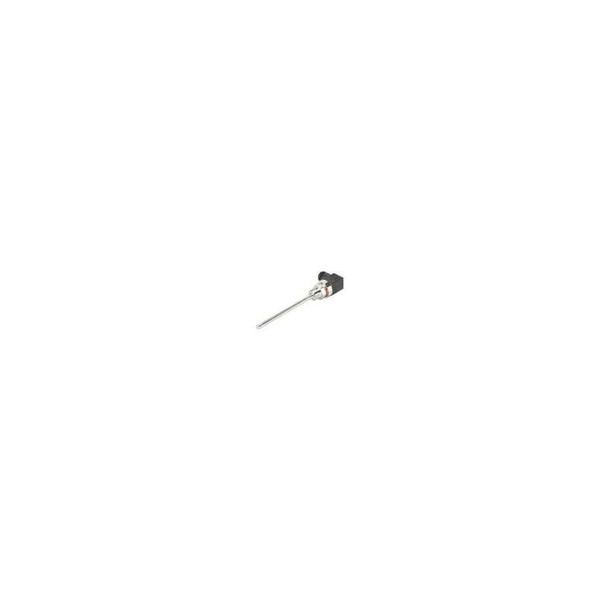

084Z8067 DANFOSS INDUSTRIAL Type Code MBT 5250 , Weight 0.154 Kg , Ambient temp. max. 125 °C , Ambient temp..

The MBT 5250 is a heavy-duty temperature sensor that can be used for controlling cooling water, lubrication oil, hydraulic oil and refrigeration plants within general industry and marine applications. This temperature sensor is based on a standardized Pt100 or Pt1000 element, which gives a reliable and accurate measurement. The MBT 5250 can be delivered with NTC/PTC elements on request. The measuring insert is based on a silicone cable, which makes the sensor very resistant towards vibrations. All parts in contact with the media are made of stainless steel AISI 316 Ti. The MBT 5250 is equipped with EN 175301-803-A, Pg 9 as standard, but can be delivered with M12 or DIN 72585 Bayonet on request. For gaseous or liquid media, e.g. air, gas, vapour, water or oil Up to +200°C media temperatures Pt100 or Pt1000 resistance element Can be used with 2- or 3-wire connections Gold plated male and female connector Interchangeable measuring insert Available with all relevant marine approvals
