087N7014 Danfoss Type: RET24

Description

Product details

Gross weight	0.16 kg
Net weight	0.16 kg

EAN

5013567873180

Ambient temperature [Â°C] [Max]	45 Â°C
Ball hardness test [Â°C]	75 Â°C
Control pollution	Degree 2
Depth [mm]	42 mm

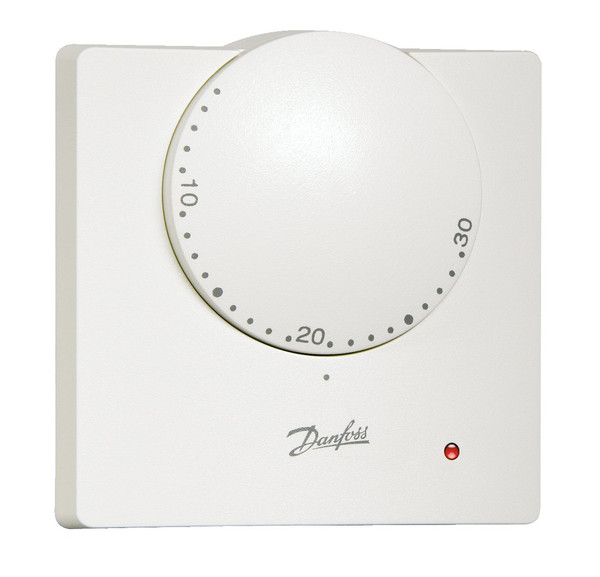

Description	Electronic room thermostat with setting dial, LED status indicator for thermostat calling.
Design standard	EN 60730-2-7
Frequency [Hz]	50/60 Hz
Height [mm]	86 mm
Media	A
On/Off control	Yes
Output relay rating inductive [A]	1 A
Output relay rating resistive [A]	3 A
Product group	Room Thermostats, RET

Supply Type	24Vac
Supply voltage range [V] AC	24 V
Switch type	SPDT
Switching differential [Â°C] [Max]	1 Â°C
Temperature [Â°C] [Max]	30 Â°C
Temperature [Â°C] [Min]	5 Â°C
Temperature accuracy	Â±1Â°C
Temperature limiter [Â°C] [Max]	30 Â°C
Temperature limiter [Â°C] [Min]	5 Â°C
Tolerance	Â±15%
Type	RET24
Width [mm]	85 mm

Ambient temperature [Â°C] [Max]	45 Â°C
Ball hardness test [Â°C]	75 Â°C
Control pollution	Degree 2
Depth [mm]	42 mm
Description	Electronic room thermostat with setting dial, LED status indicator for thermostat calling.
Design standard	EN 60730-2-7
Frequency [Hz]	50/60 Hz
Height [mm]	86 mm
Media	A
On/Off control	Yes
Output relay rating inductive [A]	1 A
Output relay rating resistive [A]	3 A
Product group	Room Thermostats, RET
Supply Type	24Vac
Supply voltage range [V] AC	24 V
Switch type	SPDT
Switching differential [Â°C] [Max]	1 Â°C
Temperature [Â°C] [Max]	30 Â°C
Temperature [Â°C] [Min]	5 Â°C
Temperature accuracy	Â±1Â°C
Temperature limiter [Â°C] [Max]	30 Â°C
Temperature limiter [Â°C] [Min]	5 Â°C
Tolerance	Â±15%
Type	RET24
Width [mm]	85 mm

RET24

Gross weight	0.16 kg
Net weight	0.16 kg

EAN

5013567873180

Ambient temperature [Â°C] [Max]	45 Â°C
Ball hardness test [Â°C]	75 Â°C
Control pollution	Degree 2
Depth [mm]	42 mm
Description	Electronic room thermostat with setting dial, LED status indicator for thermostat calling.
Design standard	EN 60730-2-7
Frequency [Hz]	50/60 Hz
Height [mm]	86 mm
Media	A
On/Off control	Yes
Output relay rating inductive [A]	1 A
Output relay rating resistive [A]	3 A
Product group	Room Thermostats, RET

Supply Type	24Vac
Supply voltage range [V] AC	24 V
Switch type	SPDT
Switching differential [Â°C] [Max]	1 Â°C
Temperature [Â°C] [Max]	30 Â°C
Temperature [Â°C] [Min]	5 Â°C
Temperature accuracy	Â±1Â°C
Temperature limiter [Â°C] [Max]	30 Â°C
Temperature limiter [Â°C] [Min]	5 Â°C
Tolerance	Â±15%
Type	RET24
Width [mm]	85 mm

Ambient temperature [Â°C] [Max]	45 Â°C
Ball hardness test [Â°C]	75 Â°C
Control pollution	Degree 2
Depth [mm]	42 mm
Description	Electronic room thermostat with setting dial, LED status indicator for thermostat calling.
Design standard	EN 60730-2-7
Frequency [Hz]	50/60 Hz
Height [mm]	86 mm
Media	A
On/Off control	Yes
Output relay rating inductive [A]	1 A
Output relay rating resistive [A]	3 A
Product group	Room Thermostats, RET
Supply Type	24Vac
Supply voltage range [V] AC	24 V
Switch type	SPDT
Switching differential [Â°C] [Max]	1 Â°C
Temperature [Â°C] [Max]	30 Â°C
Temperature [Â°C] [Min]	5 Â°C
Temperature accuracy	Â±1Â°C
Temperature limiter [Â°C] [Max]	30 Â°C
Temperature limiter [Â°C] [Min]	5 Â°C
Tolerance	Â±15%
Type	RET24
Width [mm]	85 mm
