Description

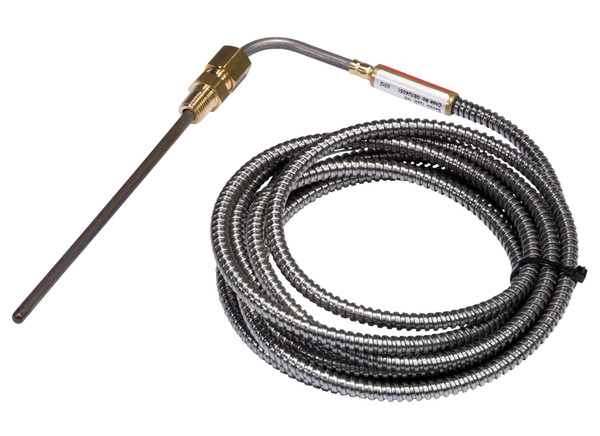

Process Connections: NPT1/4-18 , ANSI/ASME B1.20.1, Temperature range [°C] [Min]: -50, Temperature range [°C] [Max]: 800, Insertion length [mm]: 225, Protection tube material: AISI 316 Ti, Electrical connection size: 2 wire
Product details
| Gross weight | 0.49 kg |
| Net weight | 0.49 kg |
| EAN | 5702423257133 |
| Gross weight | 0.49 kg |
| Net weight | 0.49 kg |
| EAN | 5702423257133 |
| Ambient temperature max. [°C] | 200 °C |
| Ambient temperature max. [°F] | 392 °F |
| Cable length [in] | 137.8 in |
| Cable length [m] | 3.5 m |
| Cable tempr. range [°C] [Max] | 260 °C |
| Cable tempr. range [°C] [Min] | -60 °C |
| Cable tempr. range [°F] [Max] | 500 °F |
| Cable tempr. range [°F] [Min] | -76 °F |
| Cable type | PFA TC, screened |
| Connection material | Brass |
| Connection standard | ANSI/ASME B1.20 |
| Connection type | NPT |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP65 |
| Extension length [in] | 8.86 in |
| Extension length [mm] | 225 mm |
| Flex tube length [in] | 132.28 in |
| Flex tube length [m] | 3.36 m |
| Insertion length [in] | 8.86 in |
| Insertion length [mm] | 225 mm |
| Insertion type | Variable |
| Output signal | mV |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Brass |
| Process Connections | NPT1/4-18 , ANSI/ASME B1.20.1 |
| Product Group | RELIEF/ BY-PASS VALVE |
| Product group | Sensors |
| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.24 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube material | AISI 316 Ti |
| Quantity per packing format | 8 pc |
| Sensor element standard | EN 60584-2 |
| Sensor element tolerance | Class 2 |
| Sensor Insert | Fixed |
| Temperature range [°C] [Max] | 800 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 1472 °F |
| Temperature range [°F] [Min] | -58 °F |
| Thermocouple | 1 x NiCr-Ni, Type K |
| Thermocouple design std. | EN 61515 |
| Thermocouple tolerance | EN 60584-2 Class 2 |
| Type | MBT 5111 |
| Type designation | 00 MBT 5111-0101-0225-111-1 01 -0350-001-0336 |
| Ambient temperature max. [°C] | 200 °C |
| Ambient temperature max. [°F] | 392 °F |
| Cable length [in] | 137.8 in |
| Cable length [m] | 3.5 m |
| Cable tempr. range [°C] [Max] | 260 °C |
| Cable tempr. range [°C] [Min] | -60 °C |
| Cable tempr. range [°F] [Max] | 500 °F |
| Cable tempr. range [°F] [Min] | -76 °F |
| Cable type | PFA TC, screened |
| Connection material | Brass |
| Connection standard | ANSI/ASME B1.20 |
| Connection type | NPT |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP65 |
| Extension length [in] | 8.86 in |
| Extension length [mm] | 225 mm |
| Flex tube length [in] | 132.28 in |
| Flex tube length [m] | 3.36 m |
| Insertion length [in] | 8.86 in |
| Insertion length [mm] | 225 mm |
| Insertion type | Variable |
| Output signal | mV |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Brass |
| Process Connections | NPT1/4-18 , ANSI/ASME B1.20.1 |
| Product Group | RELIEF/ BY-PASS VALVE |
| Product group | Sensors |
| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.24 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube material | AISI 316 Ti |
| Quantity per packing format | 8 pc |
| Sensor element standard | EN 60584-2 |
| Sensor element tolerance | Class 2 |
| Sensor Insert | Fixed |
| Temperature range [°C] [Max] | 800 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 1472 °F |
| Temperature range [°F] [Min] | -58 °F |
| Thermocouple | 1 x NiCr-Ni, Type K |
| Thermocouple design std. | EN 61515 |
| Thermocouple tolerance | EN 60584-2 Class 2 |
| Type | MBT 5111 |
| Type designation | 00 MBT 5111-0101-0225-111-1 01 -0350-001-0336 |
