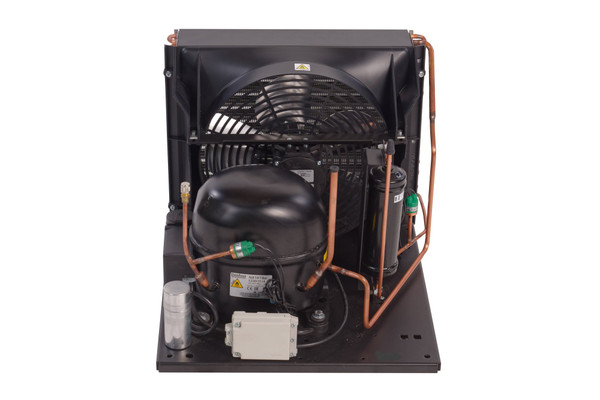

Description
Type designation: Condensing Units, Type: Optyma™, Model number: TL5CNXN0, Refrigerant: R290, Segment usage: Low Back Pressure;Medium Back Pressure, No. of phases (compressor): 1
Product details
| Gross weight | 13.04 kg |
| Net weight | 13.04 kg |
| EAN | 5702428566520 |
| Gross weight | 13.04 kg |
| Net weight | 13.04 kg |
| EAN | 5702428566520 |
| Air flow @ 50Hz [m³/h] | 243 m3/h |
| Applications | LBP MBP |
| Approval standard | CE |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor model | TL5CN |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Condenser type | BG_1 |
| Configuration code | Single |
| Description | TL5CNXN0 |
| Electrical code | G |
| Fan blade size [mm] | 170 mm |
| Fan cowl/grill type | Grill H1 |
| Fan current @ 50Hz [A] | 0.19 A |
| Fan diameter [mm] | 170 mm |
| Fan power consumption @ 50Hz [W] | 27 W |
| Length [mm] | 410 mm |
| Liquid line connection [mm] | 7 mm |
| Model number | TL5CNXN0 |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Refrigerant | R290 |
| RLA | 1.1 A |
| Segment usage | Low Back Pressure Medium Back Pressure |
| Suction connection size [mm] | 6 mm |
| Technology | Condensing units Reciprocating |
| Total height [mm] | 197 mm |
| Type | Optyma™ |
| Type designation | Condensing Units |
| Version | N0 |
| Voltage 50Hz [V] | 207 V |
| Voltage 50Hz [V] [Max] | 253 V |
| Width [mm] | 273 mm |
| Air flow @ 50Hz [m³/h] | 243 m3/h |
| Applications | LBP MBP |
| Approval standard | CE |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor model | TL5CN |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Condenser type | BG_1 |
| Configuration code | Single |
| Description | TL5CNXN0 |
| Electrical code | G |
| Fan blade size [mm] | 170 mm |
| Fan cowl/grill type | Grill H1 |
| Fan current @ 50Hz [A] | 0.19 A |
| Fan diameter [mm] | 170 mm |
| Fan power consumption @ 50Hz [W] | 27 W |
| Length [mm] | 410 mm |
| Liquid line connection [mm] | 7 mm |
| Model number | TL5CNXN0 |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Refrigerant | R290 |
| RLA | 1.1 A |
| Segment usage | Low Back Pressure Medium Back Pressure |
| Suction connection size [mm] | 6 mm |
| Technology | Condensing units Reciprocating |
| Total height [mm] | 197 mm |
| Type | Optyma™ |
| Type designation | Condensing Units |
| Version | N0 |
| Voltage 50Hz [V] | 207 V |
| Voltage 50Hz [V] [Max] | 253 V |
| Width [mm] | 273 mm |
Product details
| Gross weight | 13.04 kg |
| Net weight | 13.04 kg |
| EAN | 5702428566520 |
| Gross weight | 13.04 kg |
| Net weight | 13.04 kg |
| EAN | 5702428566520 |
| Air flow @ 50Hz [m³/h] | 243 m3/h |
| Applications | LBP MBP |
| Approval standard | CE |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor model | TL5CN |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Condenser type | BG_1 |
| Configuration code | Single |
| Description | TL5CNXN0 |
| Electrical code | G |
| Fan blade size [mm] | 170 mm |
| Fan cowl/grill type | Grill H1 |
| Fan current @ 50Hz [A] | 0.19 A |
| Fan diameter [mm] | 170 mm |
| Fan power consumption @ 50Hz [W] | 27 W |
| Length [mm] | 410 mm |
| Liquid line connection [mm] | 7 mm |
| Model number | TL5CNXN0 |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Refrigerant | R290 |
| RLA | 1.1 A |
| Segment usage | Low Back Pressure Medium Back Pressure |
| Suction connection size [mm] | 6 mm |
| Technology | Condensing units Reciprocating |
| Total height [mm] | 197 mm |
| Type | Optyma™ |
| Type designation | Condensing Units |
| Version | N0 |
| Voltage 50Hz [V] | 207 V |
| Voltage 50Hz [V] [Max] | 253 V |
| Width [mm] | 273 mm |
| Air flow @ 50Hz [m³/h] | 243 m3/h |
| Applications | LBP MBP |
| Approval standard | CE |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor model | TL5CN |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Condenser type | BG_1 |
| Configuration code | Single |
| Description | TL5CNXN0 |
| Electrical code | G |
| Fan blade size [mm] | 170 mm |
| Fan cowl/grill type | Grill H1 |
| Fan current @ 50Hz [A] | 0.19 A |
| Fan diameter [mm] | 170 mm |
| Fan power consumption @ 50Hz [W] | 27 W |
| Length [mm] | 410 mm |
| Liquid line connection [mm] | 7 mm |
| Model number | TL5CNXN0 |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Refrigerant | R290 |
| RLA | 1.1 A |
| Segment usage | Low Back Pressure Medium Back Pressure |
| Suction connection size [mm] | 6 mm |
| Technology | Condensing units Reciprocating |
| Total height [mm] | 197 mm |
| Type | Optyma™ |
| Type designation | Condensing Units |
| Version | N0 |
| Voltage 50Hz [V] | 207 V |
| Voltage 50Hz [V] [Max] | 253 V |
| Width [mm] | 273 mm |
