Description

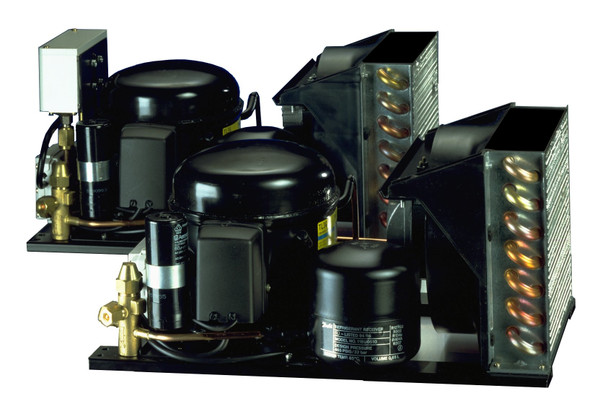

Type designation: Condensing Units, Type: Optyma™, Model number: OP-MCGC010SCA04G, Refrigerant: R134a; R513A, Segment usage: Medium Back Pressure, Voltage 60Hz [V]: 198, No. of phases (compressor): 1
Product details
| Gross weight | 21 kg |
| Net weight | 20.5 kg |
| EAN | 5702428566162 |
| Gross weight | 21 kg |
| Net weight | 20.5 kg |
| EAN | 5702428566162 |
| Air flow @ 50Hz [m³/h] | 420 m3/h |
| Applications | MBP |
| Approval standard | CE EAC |
| Compressor model | SC10GX |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Condenser type | BG_2 |
| Description | OP-MCGC010SCA04G |
| Electrical code | G |
| Fan blade size [mm] | 200 mm |
| Fan current @ 50Hz [A] | 0.19 A |
| Fan current @ 60Hz [A] | 0.17 A |
| Fan power consumption @ 50Hz [W] | 27 W |
| Fan power consumption @ 60Hz [W] | 24 W |
| Fan power output @ 50Hz [W] | 5 W |
| Fan power output @ 60Hz [W] | 5 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 240 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 220 V |
| Fan voltage @ 60Hz (max) [V] [Max] | 240 V |
| Fan voltage @ 60Hz (max) [V] [Min] | 220 V |
| Liquid line connection [mm] | 6 mm |
| Model number | OP-MCGC010SCA04G |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Receiver approval | UL |
| Refrigerant | R134a R513A R1234yf |
| Region | Africa Asia Europe Middle East Pacific |
| Segment usage | Medium Back Pressure |
| Sound power @ 50Hz [db(A)] | 56 dBA |
| Suction connection size [mm] | 8 mm |
| Technology | Reciprocating |
| Type | Optyma™ |
| Type designation | Condensing Units |
| Version | A04 |
| Voltage 50Hz [V] | 187 V |
| Voltage 50Hz [V] [Max] | 254 V |
| Voltage 60Hz [V] | 198 V |
| Voltage 60Hz [V] [Max] | 254 V |
| Air flow @ 50Hz [m³/h] | 420 m3/h |
| Applications | MBP |
| Approval standard | CE EAC |
| Compressor model | SC10GX |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Condenser type | BG_2 |
| Description | OP-MCGC010SCA04G |
| Electrical code | G |
| Fan blade size [mm] | 200 mm |
| Fan current @ 50Hz [A] | 0.19 A |
| Fan current @ 60Hz [A] | 0.17 A |
| Fan power consumption @ 50Hz [W] | 27 W |
| Fan power consumption @ 60Hz [W] | 24 W |
| Fan power output @ 50Hz [W] | 5 W |
| Fan power output @ 60Hz [W] | 5 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 240 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 220 V |
| Fan voltage @ 60Hz (max) [V] [Max] | 240 V |
| Fan voltage @ 60Hz (max) [V] [Min] | 220 V |
| Liquid line connection [mm] | 6 mm |
| Model number | OP-MCGC010SCA04G |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Receiver approval | UL |
| Refrigerant | R134a R513A R1234yf |
| Region | Africa Asia Europe Middle East Pacific |
| Segment usage | Medium Back Pressure |
| Sound power @ 50Hz [db(A)] | 56 dBA |
| Suction connection size [mm] | 8 mm |
| Technology | Reciprocating |
| Type | Optyma™ |
| Type designation | Condensing Units |
| Version | A04 |
| Voltage 50Hz [V] | 187 V |
| Voltage 50Hz [V] [Max] | 254 V |
| Voltage 60Hz [V] | 198 V |
| Voltage 60Hz [V] [Max] | 254 V |
