Description

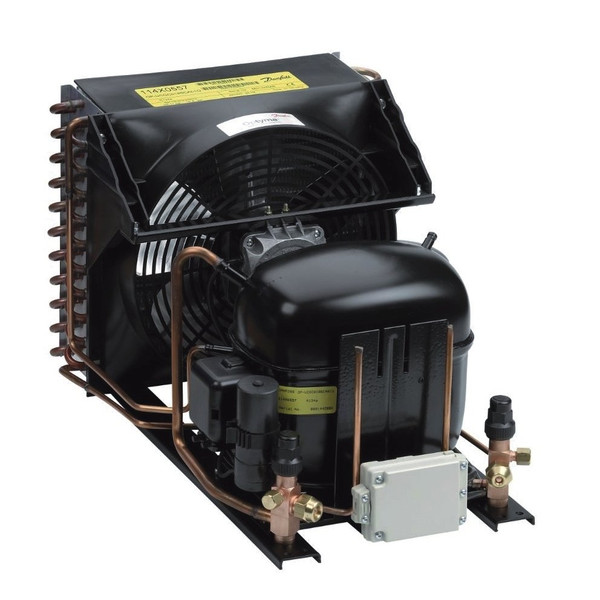

Type designation: Condensing Units, Type: Optyma™, Model number: OP-MCHC012, Refrigerant: R404A; R507, Segment usage: Medium Back Pressure, No. of phases (compressor): 1
Product details
| Gross weight | 26 kg |
| Net weight | 25.31 kg |
| EAN | 5702428565240 |
| Gross weight | 26 kg |
| Net weight | 25.31 kg |
| EAN | 5702428565240 |
| Air flow @ 50Hz [m³/h] | 800 m3/h |
| Applications | MBP |
| Compressor model | SC12MLX |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Condenser type | BG_4/5 |
| Description | OP-MCHC012SCA01G |
| Electrical code | G |
| Fan blade size [mm] | 254 mm |
| Fan current @ 50Hz [A] | 0.39 A |
| Fan current @ 60Hz [A] | 0.35 A |
| Fan power consumption @ 50Hz [W] | 55 W |
| Fan power consumption @ 60Hz [W] | 53 W |
| Fan power output @ 50Hz [W] | 16 W |
| Fan power output @ 60Hz [W] | 16 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 240 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 220 V |
| Fan voltage @ 60Hz (max) [V] [Max] | 240 V |
| Fan voltage @ 60Hz (max) [V] [Min] | 220 V |
| Length [mm] | 487 mm |
| Liquid line connection [mm] | 6 mm |
| Model number | OP-MCHC012 |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Receiver approval | UL |
| Refrigerant | R404A R507 |
| Region | Africa Asia Europe Middle East Pacific |
| Segment usage | Medium Back Pressure |
| Sound power @ 50Hz [db(A)] | 64 dBA |
| Suction connection size [mm] | 8 mm |
| Technology | Reciprocating |
| Total height [mm] | 296 mm |
| Type | Optyma™ |
| Type designation | Condensing Units |
| Version | A01 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Width [mm] | 331 mm |
| Air flow @ 50Hz [m³/h] | 800 m3/h |
| Applications | MBP |
| Compressor model | SC12MLX |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Condenser type | BG_4/5 |
| Description | OP-MCHC012SCA01G |
| Electrical code | G |
| Fan blade size [mm] | 254 mm |
| Fan current @ 50Hz [A] | 0.39 A |
| Fan current @ 60Hz [A] | 0.35 A |
| Fan power consumption @ 50Hz [W] | 55 W |
| Fan power consumption @ 60Hz [W] | 53 W |
| Fan power output @ 50Hz [W] | 16 W |
| Fan power output @ 60Hz [W] | 16 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 240 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 220 V |
| Fan voltage @ 60Hz (max) [V] [Max] | 240 V |
| Fan voltage @ 60Hz (max) [V] [Min] | 220 V |
| Length [mm] | 487 mm |
| Liquid line connection [mm] | 6 mm |
| Model number | OP-MCHC012 |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Receiver approval | UL |
| Refrigerant | R404A R507 |
| Region | Africa Asia Europe Middle East Pacific |
| Segment usage | Medium Back Pressure |
| Sound power @ 50Hz [db(A)] | 64 dBA |
| Suction connection size [mm] | 8 mm |
| Technology | Reciprocating |
| Total height [mm] | 296 mm |
| Type | Optyma™ |
| Type designation | Condensing Units |
| Version | A01 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Width [mm] | 331 mm |
Product details
| Gross weight | 26 kg |
| Net weight | 25.31 kg |
| EAN | 5702428565240 |
| Gross weight | 26 kg |
| Net weight | 25.31 kg |
| EAN | 5702428565240 |
| Air flow @ 50Hz [m³/h] | 800 m3/h |
| Applications | MBP |
| Compressor model | SC12MLX |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Condenser type | BG_4/5 |
| Description | OP-MCHC012SCA01G |
| Electrical code | G |
| Fan blade size [mm] | 254 mm |
| Fan current @ 50Hz [A] | 0.39 A |
| Fan current @ 60Hz [A] | 0.35 A |
| Fan power consumption @ 50Hz [W] | 55 W |
| Fan power consumption @ 60Hz [W] | 53 W |
| Fan power output @ 50Hz [W] | 16 W |
| Fan power output @ 60Hz [W] | 16 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 240 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 220 V |
| Fan voltage @ 60Hz (max) [V] [Max] | 240 V |
| Fan voltage @ 60Hz (max) [V] [Min] | 220 V |
| Length [mm] | 487 mm |
| Liquid line connection [mm] | 6 mm |
| Model number | OP-MCHC012 |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Receiver approval | UL |
| Refrigerant | R404A R507 |
| Region | Africa Asia Europe Middle East Pacific |
| Segment usage | Medium Back Pressure |
| Sound power @ 50Hz [db(A)] | 64 dBA |
| Suction connection size [mm] | 8 mm |
| Technology | Reciprocating |
| Total height [mm] | 296 mm |
| Type | Optyma™ |
| Type designation | Condensing Units |
| Version | A01 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Width [mm] | 331 mm |
| Air flow @ 50Hz [m³/h] | 800 m3/h |
| Applications | MBP |
| Compressor model | SC12MLX |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Condenser type | BG_4/5 |
| Description | OP-MCHC012SCA01G |
| Electrical code | G |
| Fan blade size [mm] | 254 mm |
| Fan current @ 50Hz [A] | 0.39 A |
| Fan current @ 60Hz [A] | 0.35 A |
| Fan power consumption @ 50Hz [W] | 55 W |
| Fan power consumption @ 60Hz [W] | 53 W |
| Fan power output @ 50Hz [W] | 16 W |
| Fan power output @ 60Hz [W] | 16 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 240 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 220 V |
| Fan voltage @ 60Hz (max) [V] [Max] | 240 V |
| Fan voltage @ 60Hz (max) [V] [Min] | 220 V |
| Length [mm] | 487 mm |
| Liquid line connection [mm] | 6 mm |
| Model number | OP-MCHC012 |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Receiver approval | UL |
| Refrigerant | R404A R507 |
| Region | Africa Asia Europe Middle East Pacific |
| Segment usage | Medium Back Pressure |
| Sound power @ 50Hz [db(A)] | 64 dBA |
| Suction connection size [mm] | 8 mm |
| Technology | Reciprocating |
| Total height [mm] | 296 mm |
| Type | Optyma™ |
| Type designation | Condensing Units |
| Version | A01 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Width [mm] | 331 mm |
