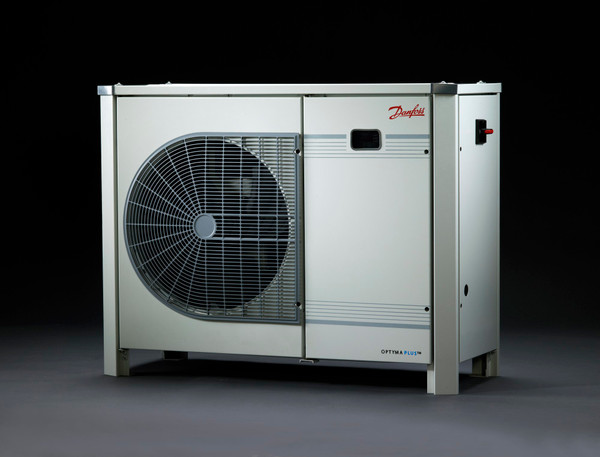

114X4324 Danfoss Optyma™ Plus, OP-MPXM080MLP00E

Description

Description

Product details

Gross weight	137 kg
Net weight	101 kg

EAN

5702428564526

Gross weight	137 kg
Net weight	101 kg
EAN	5702428564526

Air flow @ 50Hz [m³/h]	5200 m3/h
Applications	MBP
Approval standard	CE EAC
Compressor model	MLZ038T4
Compressor power supply [V/Ph/Hz]	400/3/50
Condenser type	G7
Description	OP-MPXM080MLP00E
Electrical code	E
Fan blade size [mm]	500 mm
Fan cowl/grill type	Grill H3
Fan current @ 50Hz [A]	0.96 A
Fan diameter [mm]	500 mm
Fan power consumption @ 50Hz [W]	220 W
Fan power output @ 50Hz [W]	130 W
Fan power supply [V/Ph/Hz]	230/1/50
Fan voltage @ 50Hz (max) [V] [Max]	230 V
Fan voltage @ 50Hz (max) [V] [Min]	230 V
Length [mm]	481 mm
Liquid line connection [in]	5/8 in
Liquid line connection type	Solder
MCC	15 A
Model number	OP-MPXM080MLP00E

No. of phases (compressor)	3
No. of phases (fan)	1
Number of fans	1
Receiver approval	CE
Receiver volume [L]	6.2 L
Refrigerant	R134a R404A R407A R407F R448A R449A R452A R507 R513A
Region	Africa Asia Europe Middle East Pacific
RLA	9.6 A
Segment usage	Medium Back Pressure
Sound power @ 50Hz [db(A)]	69 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]	38 dBA
Suction connection size [in]	7/8 in
Suction connection type	Solder
Technology	Scroll
Total height [mm]	967 mm
Type	Optyma™ Plus
Type designation	Condensing Units
Version	P00
Voltage 50Hz [V]	380 V
Voltage 50Hz [V] [Max]	415 V
Width [mm]	1406 mm

Air flow @ 50Hz [m³/h]	5200 m3/h
Applications	MBP
Approval standard	CE EAC
Compressor model	MLZ038T4
Compressor power supply [V/Ph/Hz]	400/3/50
Condenser type	G7
Description	OP-MPXM080MLP00E
Electrical code	E
Fan blade size [mm]	500 mm
Fan cowl/grill type	Grill H3
Fan current @ 50Hz [A]	0.96 A
Fan diameter [mm]	500 mm
Fan power consumption @ 50Hz [W]	220 W
Fan power output @ 50Hz [W]	130 W
Fan power supply [V/Ph/Hz]	230/1/50
Fan voltage @ 50Hz (max) [V] [Max]	230 V
Fan voltage @ 50Hz (max) [V] [Min]	230 V
Length [mm]	481 mm
Liquid line connection [in]	5/8 in
Liquid line connection type	Solder
MCC	15 A
Model number	OP-MPXM080MLP00E
No. of phases (compressor)	3
No. of phases (fan)	1
Number of fans	1
Receiver approval	CE
Receiver volume [L]	6.2 L
Refrigerant	R134a R404A R407A R407F R448A R449A R452A R507 R513A
Region	Africa Asia Europe Middle East Pacific
RLA	9.6 A
Segment usage	Medium Back Pressure
Sound power @ 50Hz [db(A)]	69 dBA
Sound pressure level 50Hz (@10 m distance) [db(A)]	38 dBA
Suction connection size [in]	7/8 in
Suction connection type	Solder
Technology	Scroll
Total height [mm]	967 mm
Type	Optyma™ Plus
Type designation	Condensing Units
Version	P00
Voltage 50Hz [V]	380 V
Voltage 50Hz [V] [Max]	415 V
Width [mm]	1406 mm

Type designation: Condensing Units, Type: Optyma™ Plus, Model number: OP-MPXM080MLP00E, Refrigerant: R134a; R404A; R407A; R407F; R448A; R449A; R452A; R507; R513A, Segment usage: Medium Back Pressure, No. of phases (compressor): 3
