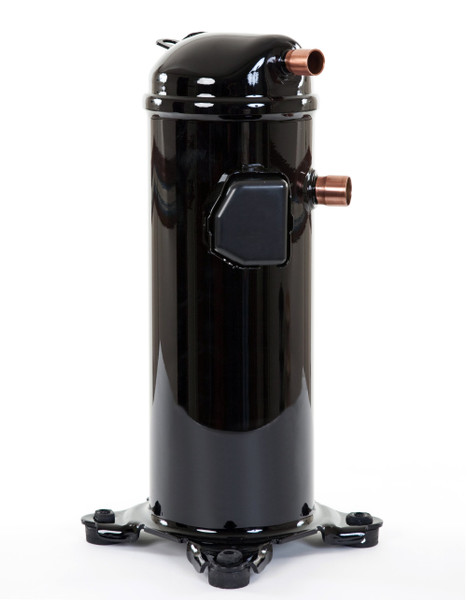

Description
Refrigerant: R410A, Segment usage: Air conditioning, Compressor power supply [V/Ph/Hz]: 220-240/1/50
Product details
| Gross weight | 45 kg |
| Net weight | 41.1 kg |
| EAN | 5702428205139 |
| Gross weight | 45 kg |
| Net weight | 41.1 kg |
| EAN | 5702428205139 |
| Approval standard | CE UL |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 1.02 Ohm |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Capacity of capacitor A | 55 µF |
| Capacity of capacitor B | 88-108 µF |
| Colour | Black |
| Compressor power supply [V/Ph/Hz] | 220-240/1/50 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | HLJ083T5 |
| Diameter [mm] | 184 mm |
| Discharge connection height [mm] | 422 mm |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 0XR6002B-2 |
| Economizer | No |
| Fitting standard | ODF |
| Frequency [Hz] | 50 |
| Gauge port HP | None |
| Gauge port LP | None |
| Gaz equalization | None |
| Glass mounting | None |
| High side max pressure (Ps) | 46.1 bar |
| High value of nominal voltage at 50Hz [V] | 230 V |
| High value of nominal voltage at 60Hz [V] | 0 V |
| High value of voltage range at 50Hz [V] | 253 V |
| High value of voltage range at 60Hz [V] | 0 V |
| IP protection class | IP22 |
| Length [mm] | 239 mm |
| Low side max pressure (Ps) | 31.1 bar |
| Low value of nominal voltage at 50Hz [V] | 230 V |
| Low value of nominal voltage at 60Hz [V] | 0 V |
| Low value of voltage range at 50Hz [V] | 207 V |
| Low value of voltage range at 60Hz [V] | 0 V |
| LRA | 130 A |
| Main winding resistance for single-phase compressors [Ohm] | 0.39 Ohm |
| MCC | 50 A |
| Model number | HLJ083T5LP6 |
| Motor protection | Internal overload protector |
| Nominal cooling capacity at 50Hz | 17.3 kW |
| Nominal heating capacity at 50Hz | 11.3 kW |
| Oil charge [L] | 1.57 L |
| Oil drain | None |
| Oil equalization | None |
| Oil reference | 320HV |
| Oil type | PVE |
| Packing format | Single pack/pallet |
| Packing quantity | 16 |
| Phase | 1 |
| Power connections | Spade |
| Refrigerant | R410A |
| Refrigerant charge [kg] [Max] | 5.44 kg |
| Relay model | 3ARR3*25AS* |
| Relief valve | Yes |
| RLA | 32 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 0 rpm |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 280 mm |
| Suction connection pipe size [in] | 7/8 in |
| Suction connection size [in] | 7/8 in |
| Swept volume [cm3] | 78.08 cm3 |
| Technology | Scroll |
| Total height [mm] | 455 mm |
| Type | HLJ |
| Type designation | Compressor |
| Viscosity [cP] | 68 cP |
| Voltage of capacitor A [V] | 440 V |
| Voltage of capacitor B [V] | 330 V |
| Width [mm] | 239 mm |
| Approval standard | CE UL |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 1.02 Ohm |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Capacity of capacitor A | 55 µF |
| Capacity of capacitor B | 88-108 µF |
| Colour | Black |
| Compressor power supply [V/Ph/Hz] | 220-240/1/50 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | HLJ083T5 |
| Diameter [mm] | 184 mm |
| Discharge connection height [mm] | 422 mm |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 0XR6002B-2 |
| Economizer | No |
| Fitting standard | ODF |
| Frequency [Hz] | 50 |
| Gauge port HP | None |
| Gauge port LP | None |
| Gaz equalization | None |
| Glass mounting | None |
| High side max pressure (Ps) | 46.1 bar |
| High value of nominal voltage at 50Hz [V] | 230 V |
| High value of nominal voltage at 60Hz [V] | 0 V |
| High value of voltage range at 50Hz [V] | 253 V |
| High value of voltage range at 60Hz [V] | 0 V |
| IP protection class | IP22 |
| Length [mm] | 239 mm |
| Low side max pressure (Ps) | 31.1 bar |
| Low value of nominal voltage at 50Hz [V] | 230 V |
| Low value of nominal voltage at 60Hz [V] | 0 V |
| Low value of voltage range at 50Hz [V] | 207 V |
| Low value of voltage range at 60Hz [V] | 0 V |
| LRA | 130 A |
| Main winding resistance for single-phase compressors [Ohm] | 0.39 Ohm |
| MCC | 50 A |
| Model number | HLJ083T5LP6 |
| Motor protection | Internal overload protector |
| Nominal cooling capacity at 50Hz | 17.3 kW |
| Nominal heating capacity at 50Hz | 11.3 kW |
| Oil charge [L] | 1.57 L |
| Oil drain | None |
| Oil equalization | None |
| Oil reference | 320HV |
| Oil type | PVE |
| Packing format | Single pack/pallet |
| Packing quantity | 16 |
| Phase | 1 |
| Power connections | Spade |
| Refrigerant | R410A |
| Refrigerant charge [kg] [Max] | 5.44 kg |
| Relay model | 3ARR3*25AS* |
| Relief valve | Yes |
| RLA | 32 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 0 rpm |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 280 mm |
| Suction connection pipe size [in] | 7/8 in |
| Suction connection size [in] | 7/8 in |
| Swept volume [cm3] | 78.08 cm3 |
| Technology | Scroll |
| Total height [mm] | 455 mm |
| Type | HLJ |
| Type designation | Compressor |
| Viscosity [cP] | 68 cP |
| Voltage of capacitor A [V] | 440 V |
| Voltage of capacitor B [V] | 330 V |
| Width [mm] | 239 mm |
