Description

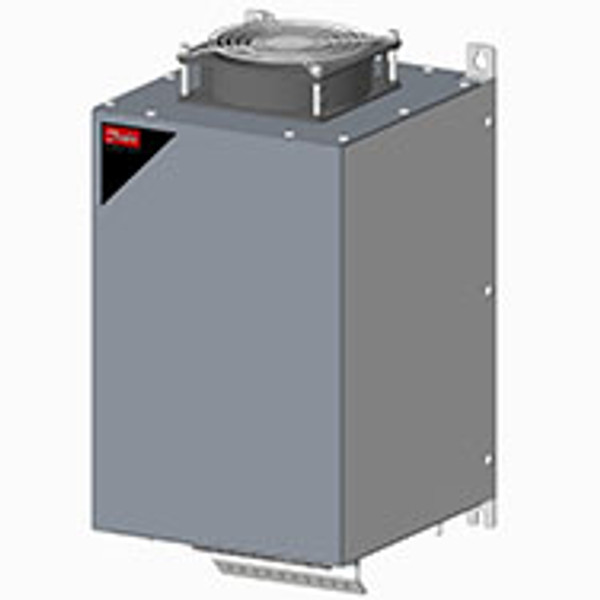

The VLT® Advanced Harmonic Filter is a passive harmonic filter specially designed to match the Danfoss frequency converters VLT® AutomationDrive, VLT® AQUA Drive and VLT® HVAC Drive. With AHF005 connected in front of the Danfoss VLT® the harmonic current distortion generated back to the mains is reduced to maximum 5% at full load. [!]Forced cooling is not included within IP00 types. Cooling must be secured separately during installation. Accessories: IP20 to Type 1/NEMA conversion kit: 130B3275 IP20 to Type 1/NEMA conversion kit with capacitor disconnect: 130B5904 Back plate: 130B3284 Specifications: THiD less than 5% Line voltage: 440-480V Line frequency: 60Hz Filter current: 019A Line voltage tolerances: +/- 10% Line frequency tolerances: +5% / -1.5% Overload capacity: 160% for 60 sec. every 10 min. Enclosure rating: 20 Cooling concept: Forced cooled by build-in fan Efficiency: > 98% Ambient temperature without derating: 5-45 ºC Enclosure: X2
Product details
| Gross weight | 37 kg |
| Net weight | 30 kg |
| Volume | 25.725 l |
| EAN | 5710107610051 |
| Gross weight | 37 kg |
| Net weight | 30 kg |
| Volume | 25.725 l |
| EAN | 5710107610051 |
DD Power Options Class
| Product Series | VLT® Harmonic Filter 5% |
| Product Series | VLT® Harmonic Filter 5% |
Product details
| Gross weight | 37 kg |
| Net weight | 30 kg |
| Volume | 25.725 l |
| EAN | 5710107610051 |
| Gross weight | 37 kg |
| Net weight | 30 kg |
| Volume | 25.725 l |
| EAN | 5710107610051 |
DD Power Options Class
| Product Series | VLT® Harmonic Filter 5% |
| Product Series | VLT® Harmonic Filter 5% |
