Description

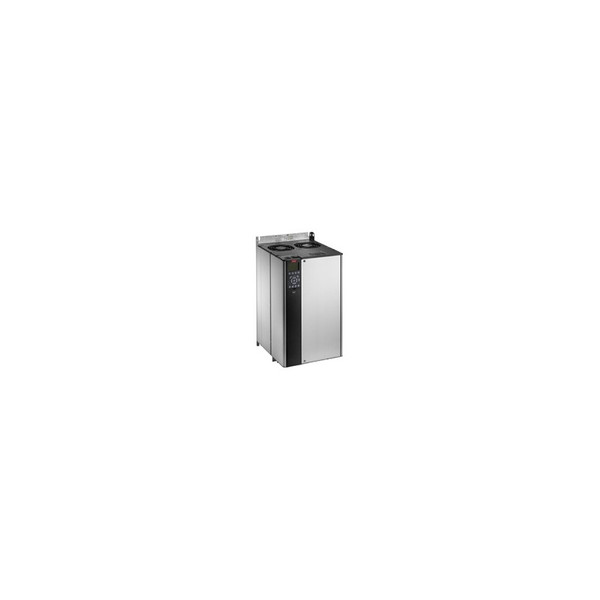

VLT® AQUA Drive FC 200 30 KW / 40 HP, 380 - 480 VAC, IP55 / Type 12, RFI Class A2 (C3), No brake chopper FC-202P30KT4E55H2XGXDXXSXXXXAXBXCXXXXDX More details
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful standard and optional features, the VLT® AQUA Drive provides the lowest overall cost of ownership for water and wastewater applications. Productdata VLT® AQUA Drive 30 KW / 40 HP, 380 - 480 VAC, No brake chopper, IP55 / Type 12, RFI Class A2 (C3), No A Option, No B Option, Not coated PCB, Loadsharing, FC-202P30KT4E55H2XGXDXXSXXXXAXBXCXXXXDX
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful standard and optional features, the VLT® AQUA Drive provides the lowest overall cost of ownership for water and wastewater applications. Productdata VLT® AQUA Drive 30 KW / 40 HP, 380 - 480 VAC, No brake chopper, IP55 / Type 12, RFI Class A2 (C3), No A Option, No B Option, Not coated PCB, Loadsharing, FC-202P30KT4E55H2XGXDXXSXXXXAXBXCXXXXDX
| CHARACTERISTIC | VALUE |
|---|---|
| PRODUCT GROUP | (FC-) VLT® AQUA Drive |
| SERIES | (202) Advanced version |
| POWER RATING | (P30K) 30 KW / 40 HP |
| PHASE | (T) Three phase |
| MAINS VOLTAGE | (4) 380 - 480 VAC |
| ENCLOSURE | (E55) IP55 / Type 12 |
| RFI FILTER | (H2) RFI Class A2 (C3) |
| BRAKE - SAFE STOP | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| COATING PCB | (X) Not coated PCB |
| MAINS OPTION | (D) Loadsharing |
| ADAPTATION A | (X) Standard Cable Entries |
| ADAPTATION B | (X) No adaptation |
| SOFTWARE RELEASE | (SXXX) Latest release std. SW. |
| SOFTWARE LANGUAGE PACK | (X) Standard Language Pack |
| A OPTION | (AX) No A Option |
| B OPTION | (BX) No B Option |
| C0 OPTION MCO | (CX) No C0 option |
| C1 OPTION | (X) No C1 option |
| C OPTION SOFTWARE | (XX) No software option |
| D OPTION | (DX) No D option |
| FRAME SIZE | B2 |
| TYPECODE | FC-202P30KT4E55H2XGX |
| TYPECODE PART 2 | DXXSXXXXAXBXCXXXXDX |
| PRODUCT CATALOG | Global (Standard) |
| VENDOR | Factory DK |
| VENDOR REGION | Northern Europe |
| MATERIAL GROSS WEIGHT | 30.100 |
| MATERIAL NET WEIGHT | 29.500 |
