Description

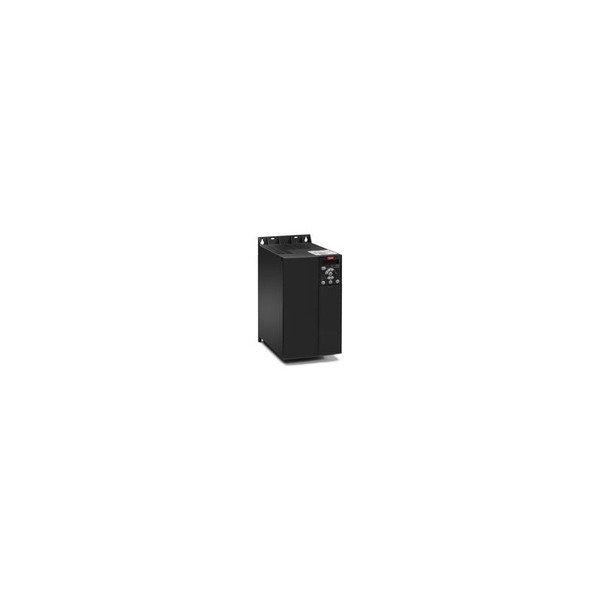

VLT® HVAC Drive FC 102 200 KW / 300 HP, 380 - 480 VAC, No brake chopper, IP54 / Type 12, RFI Class A2 (C3), No A Option, No B Option, Coated PCB, Mains Disconnect + Fuse FC-102P200T4E54H2XGC3XXSXXXXAXBXCXXXXDX More details
| CHARACTERISTIC | VALUE |
|---|---|
| PRODUCT GROUP | (FC-) VLT® HVAC Drive |
| SERIES | (102) HVAC Advanced version |
| POWER RATING | (P200) 200 KW / 300 HP |
| PHASE | (T) Three phase |
| MAINS VOLTAGE | (4) 380 - 480 VAC |
| ENCLOSURE | (E54) IP54 / Type 12 |
| RFI FILTER | (H2) RFI Class A2 (C3) |
| BRAKE - SAFE STOP | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| COATING PCB | (C) Coated PCB |
| MAINS OPTION | (3) Mains Disconnect + Fuse |
| ADAPTATION A | (X) Standard Cable Entries |
| ADAPTATION B | (X) No adaptation |
| SOFTWARE RELEASE | (SXXX) Latest release std. SW. |
| SOFTWARE LANGUAGE PACK | (X) Standard Language Pack |
| A OPTION | (AX) No A Option |
| B OPTION | (BX) No B Option |
| C0 OPTION MCO | (CX) No C0 option |
| C1 OPTION | (X) No C1 option |
| C OPTION SOFTWARE | (XX) No software option |
| D OPTION | (DX) No D option |
| PRODUCT CATALOG | Global (Standard) |
| TYPECODE | FC-102P200T4E54H2XGC |
| TYPECODE PART 2 | 3XXSXXXXAXBXCXXXXDX |
| ENCLOSURE TYPE | (E) |
| ENCLOSURE CLASS | (54) |
| SPARE PART - RFI HARDWARE | (H) H-type |
| VENDOR | Cannot Determine Vendor |
| VENDOR REGION | Northern Europe |
| MATERIAL GROSS WEIGHT | 114.500 |
| MATERIAL NET WEIGHT | 99.500 |
