Description
Easy-to-use local control panel for the VLT® AutomationDrive. The well- structured menu system ensures fast commissioning and easy access to its powerful functions saving time, energy, and money.
Product details
| Gross weight | 5 kg | ||
| Net weight | 4.8 kg | ||
| Volume | 22.04 l | ||
| EAN | 5702427806863 |
Allocate codes for sales
| \\Customer Specific\\ | No |

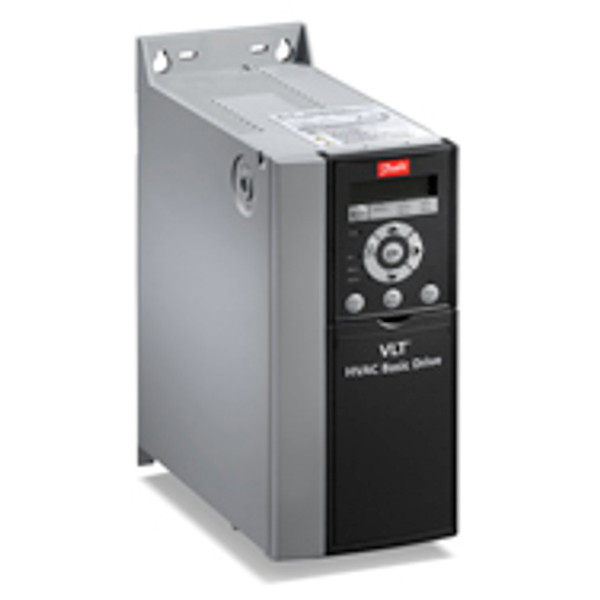

VLT® HVAC DRIVE FC 101 SERIES
| Product Group | (FC-) VLT® HVAC Drive FC- | ||
| Series | 101 | ||
| Power Rating | (P3K7) 3.7 KW / 5.0 HP | ||
| Phase | (T) Three phase | ||
| Mains Voltage | (2) 200 - 240 VAC | ||
| Enclosure | (E20) IP20 / Chassis | ||
| RFI Filter | (H4) RFI class A1 (C2) | ||
| Brake - Safe Stop | (X) No brake chopper | ||
| LCP | (X) No Loc. Cont. Panel | ||
| Coating PCB | (C) Coated PCB | ||
| Mains Option | (X) No Mains Option | ||
| Adaptation A | (X) Standard Cable Entries | ||
| Adaptation B | (X) No adaptation | ||
| Software Release | (SXXX) Latest release std. SW. | ||
| Software Language Pack | (X) Standard Language Pack | ||
| A Option | (AX) No A Option | ||
| B Option | (BX) No B Option | ||
| C0 Option MCO | (CX) No C0 option | ||
| C1 Option | (X) No C1 option | ||
| C Option Software | (XX) No software option | ||
| D Option | (DX) No D option | ||
| Frame Size | H3 | ||
| Typecode Part 1 | FC-101P3K7T2E20H4XXC | ||
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | ||
| Division | 09 | ||
| Modelcode01 | FC-101P3K7T2E20H4XXC | ||
| Modelcode02 | XXXSXXXXAXBXCXXXXDX | ||
| Product Catalog | Global (Standard) | ||
| Product Group | A79 | ||
| Product Hierarchy | 09A7960160254 | ||
| Product View (Switch) | Global (Standard) | ||
| Recommended Factory | Cannot Determine Vendor | ||
| Vendor | Cannot Determine Vendor |
