Description
VLT HVAC Drive FC-102 800 KW / 1200 HP, 525 - 690 VAC *, Safe Stop, IP54 / Type 12,RFI Class A2 (C3),No A Option, No B Option, Coated PCB, Mains Disconnect + Fuse FC-102P800T7E54H2TGC3XXSXXXXAXBXCXXXXDX
Product Details‚ 131N4670

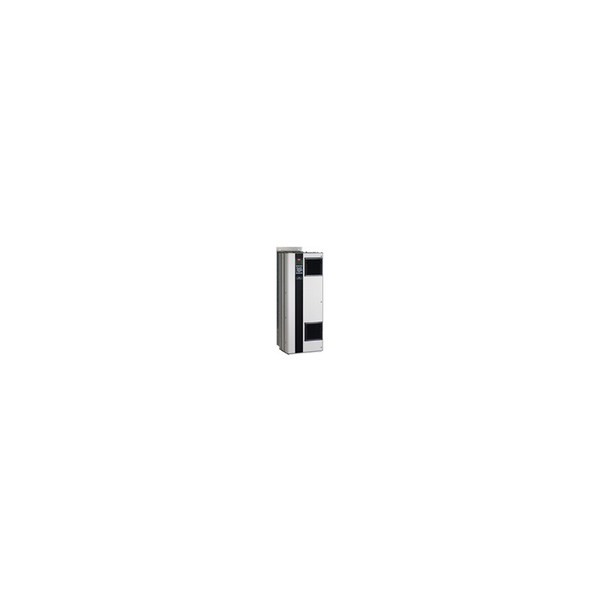

VLT HVAC Drive FC-102
Danfoss VLT HVAC Drive FC-102 Drive is dedicated to ventilation, heating, and refrigeration applications. With a wide range of powerful standard and optional features, the Drive provides the lowest overall cost of ownership.
| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT HVAC Drive FC- |
| Series | 102 |
| Power Rating | (P800) 800 KW / 1200 HP |
| Phase | (T) Three phase |
| Mains Voltage | (7) 525 - 690 VAC * |
| Enclosure | (E54) IP54 / Tipo 12 |
| RFI Filter | (H2) RFI Class A2 (C3) |
| Brake - Safe Stop | (T) Safe Stop |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (C) Coated PCB |
| Mains Option | (3) Mains Disconnect + Fuse |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AX) No A Option |
| B Option | (BX) No B Option |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | F3 |
| Product Catalog | Global (Standard) |
| Tipocode Part 1 | FC-102P800T7E54H2TGC |
| Tipocode Part 2 | 3XXSXXXXAXBXCXXXXDX |
| Vendor | Factory US |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 1,017.300 |
| Calculated Net Weight [kg] | 1,017.000 |
