Description
VLT HVAC Drive FC-102 7.5 KW / 10 HP, 200 - 240 VAC, No brake chopper, IP20 / Chassis,RFI Class A1/B (C1),PROFIBUS DP MCA 101, No B Option, Not coated PCB, No Mains Opcion FC-102P7K5T2E20H1XGXXXXSXXXXA0BXCXXXXDX
Product Details‚ 131Z0285

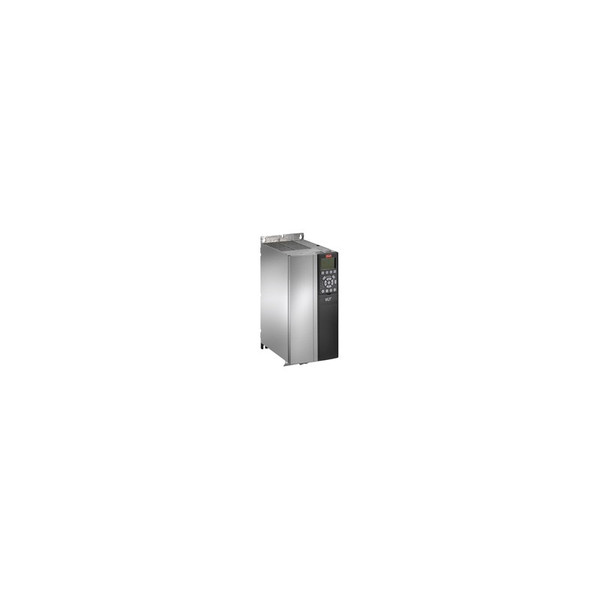

VLT HVAC Drive FC-102
Danfoss VLT HVAC Drive FC-102 Drive is dedicated to ventilation, heating, and refrigeration applications. With a wide range of powerful standard and optional features, the Drive provides the lowest overall cost of ownership.
| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT HVAC Drive FC- |
| Series | 102 |
| Power Rating | (P7K5) 7.5 KW / 10 HP |
| Phase | (T) Three phase |
| Mains Voltage | (2) 200 - 240 VAC |
| Enclosure | (E20) IP20 / Chassis |
| RFI Filter | (H1) RFI Class A1/B (C1) |
| Brake - Safe Stop | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (X) Not coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (A0) PROFIBUS DP MCA 101 |
| B Option | (BX) No B Option |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | B3 |
| Product Catalog | Global (Standard) |
| Tipocode Part 1 | FC-102P7K5T2E20H1XGX |
| Tipocode Part 2 | XXXSXXXXA0BXCXXXXDX |
| Vendor | Factory DK |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 12.300 |
| Calculated Net Weight [kg] | 12.000 |
