Description

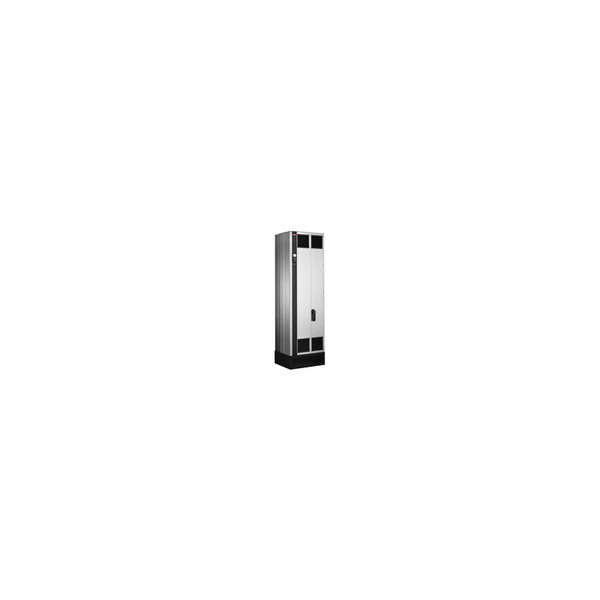

VLT AQUA Drive FC 202
Product details
| Gross weight | 272.3 kg |
| Net weight | 272 kg |
| Volume | 0 l |
| EAN | 5710107357468 |
VLT AQUA DRIVE FC 200 SERIES
| Product Group | FC- | VLT AQUA Drive FC- |
| Series | 202 | 202 |
| Power Rating | P560 | (P560) 560 KW / 750 HP |
| Phase | T | Three phase |
| Mains Voltage | 7 | 525 - 690 VAC * |
| Enclosure | E54 | (E54) IP54 / Type 12 |
| RFI Filter | H2 | RFI Filter |
| Brake - Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | 3 | Mains Disconnect + Fuse |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| A Option | A0 | PROFIBUS DP MCA 101 |
| Software Release | SXXX | Latest release std. SW. |
| B Option | BX | No B Option |
| Software Language Pack | X | Standard Language Pack |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | E1 | E1 |
| Typecode Part 1 | FC-202P560T7E54H2XGC | |
| Typecode Part 2 | 3XXSXXXXA0BXCXXXXDX | |
| Calculated Gross Weight | 272.3 | |
| Calculated Net Weight [kg] | 272 | |
| Continuous Current (HO) [A] | 523 | |
| Continuous Current (HO) [A] | 500 | |
| Continuous Current (NO) [A] | 596 | |
| Continuous Current (NO) [A] | 570 | |
| Depth [mm] | 494,0 | |
| Depth with Option A/B [mm] | 494,0 | |
| Height [mm] | 2000,0 | |
| Height w/ Regen/Loadshare [mm] | NV | |
| Intermittent Current (HO) [A] | 784 | |
| Intermittent Current (HO) [A] | 750 | |
| Intermittent Current (NO) [A] | 656 | |
| Intermittent Current (NO) [A] | 627 | |
| kVA | 681 | |
| Material Gross Weight | 272.3 | |
| Material Net Weight | 272 | |
| Modelcode01 | FC-202P560T7E54H2XGC | |
| Modelcode02 | 3XXSXXXXA0BXCXXXXDX | |
| Possible rating issue | WARN01 | Possible Rating Issue: |
| Power 110% (NO) [KW] | 560 | |
| Power 150% (HO) [KW] | 500 | |
| Power 160% (HO) [KW] | NV | |
| Power 180% (HO) [KW] | NV | |
| Power Loss HO [W] | 6493 | |
| Power Loss HO [W] | 6707 | |
| Power Loss NO [W] | 7395 | |
| Power Loss NO [W] | 7653 | |
| Product Catalog | NO_VIEW | NO VIEW |
| Product View (Switch) | GLBL | Global (Standard) |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Vendor | ERR01 | Cannot Determine Vendor |
| Width w/ no C options [mm] | 600,0 |
