Description

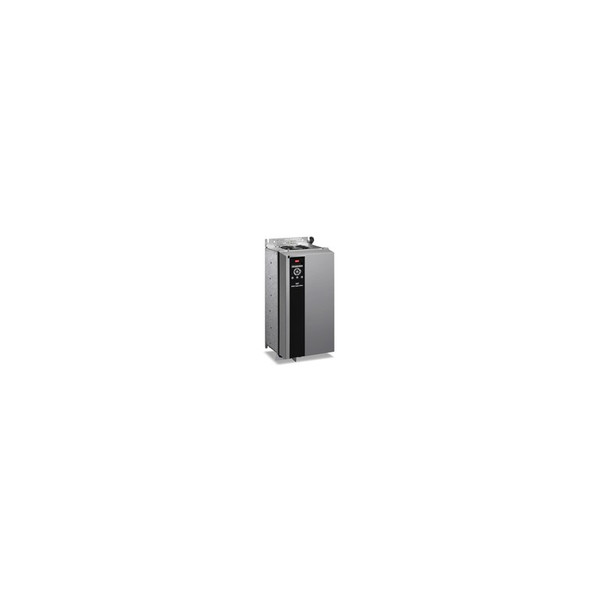

VLT HVAC Basic Drive FC-101 18.5 KW / 25 HP, 525-600 VAC, IP20 / Chassis, No RFI filter, No brake chopper, No Mains Option No A Option, No B Option, Not coated PCB FC-101P18KT6E20HXXXXXXXSXXXXAXBXCXXXXDX
Product Details 134F0219
VLT HVAC Basic Drive FC 101
VLT HVAC Basic Drive is the natural choice for the HVAC OEMer| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT HVAC Drive FC- |
| Series | 101 |
| Power Rating | (P18K) 18.5 KW / 25 HP |
| Phase | (T) Three phase |
| Mains Voltage | (6) 525 - 600 VAC |
| Enclosure | (E20) IP20 / Chassis |
| RFI Filter | (HX) No RFI filter |
| Brake - Safe Stop | (X) No brake chopper |
| LCP | (X) No Loc. Cont. Panel |
| Coating PCB | (X) Not coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AX) No A Option |
| B Option | (BX) No B Option |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | H6 |
| Product Catalog | Global (Standard) |
| Typecode Part 1 | FC-101P18KT6E20HXXXX |
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX |
| Sales Organization | 2200 |
| Vendor | Factory DK |
| Vendor Region | Southern Europe |
| Material Gross Weight | 0.000 |
| Material Net Weight | 0.000 |
