Description

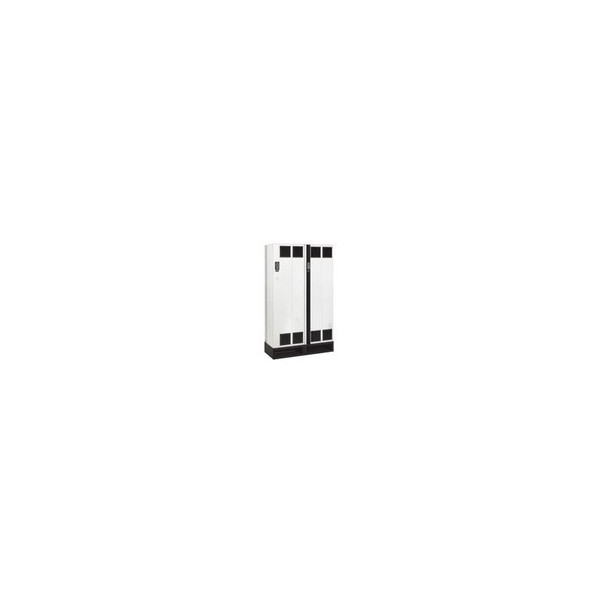

VLT® AQUA Drive FC 200 315 KW / 450 HP, 380 - 480 VAC, IP20 / Chassis, RFI Class A2 (C3), No brake chopper FC-202N315T4E20H2XGCXXXSXXXXAXBXCXXXXDX More details
| CHARACTERISTIC | VALUE |
|---|---|
| PRODUCT VIEW (SWITCH) | Global (Standard) |
| PRODUCT GROUP | (FC-) VLT® AQUA Drive |
| SERIES | (202) Advanced version |
| POWER RATING | (N315) 315 KW / 450 HP |
| PHASE | (T) Three phase |
| MAINS VOLTAGE | (4) 380 - 480 VAC |
| ENCLOSURE | (E20) IP20 / Chassis |
| RFI FILTER | (H2) RFI Class A2 (C3) |
| BRAKE - SAFE STOP | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| COATING PCB | (C) Coated PCB |
| MAINS OPTION | (X) No Mains Option |
| ADAPTATION A | (X) Standard Cable Entries |
| ADAPTATION B | (X) No adaptation |
| SOFTWARE RELEASE | (SXXX) Latest release std. SW. |
| SOFTWARE LANGUAGE PACK | (X) Standard Language Pack |
| A OPTION | (AX) No A Option |
| B OPTION | (BX) No B Option |
| C0 OPTION MCO | (CX) No C0 option |
| C1 OPTION | (X) No C1 option |
| C OPTION SOFTWARE | (XX) No software option |
| D OPTION | (DX) No D option |
| FRAME SIZE | D4H |
| TYPECODE | FC-202N315T4E20H2XGC |
| TYPECODE PART 2 | XXXSXXXXAXBXCXXXXDX |
| PRODUCT CATALOG | NO VIEW |
| ORIGINAL PRODUCT MATRIX | (STD) Standard Drive |
| VENDOR | Cannot Determine Vendor |
| VENDOR REGION | Cannot Determine Region |
| CALCULATED GROSS WEIGHT | 125,300 |
| CALCULATED NET WEIGHT | 125,000 |
| MATERIAL GROSS WEIGHT | 142,000 |
| MATERIAL NET WEIGHT | 137,000 |
