Description

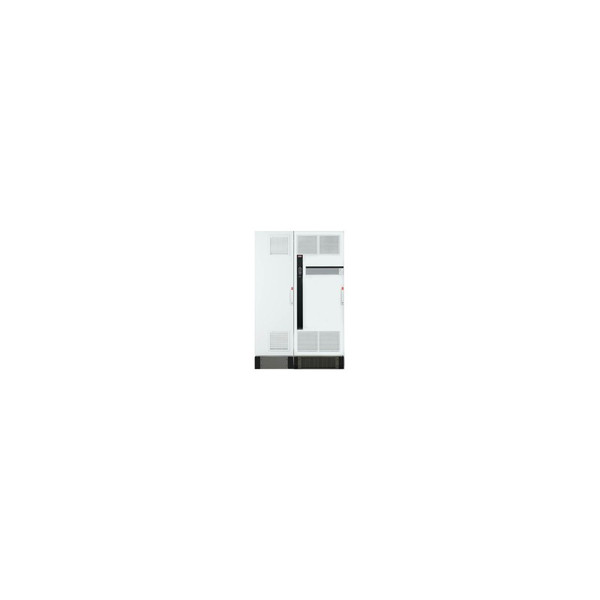

VLT AQUA Drive FC-202 500 KW / 650 HP, 525 - 690 VAC, IP21 / Type 1, 12 Pulse + Class A2 RFI, No brake chopper FC-202P500T7E21B2XGC3XXSXXXXAXBKCXXXXD0
Product Details 134G2466
VLT AQUA Drive FC 202
Danfoss VLT AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful standard and optional features, the VLT AQUA Drive provides the lowest overall cost of ownership for water and wastewater applications.| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT AQUA Drive FC- |
| Series | 202 |
| Power Rating | (P500) 500 KW / 650 HP |
| Phase | (T) Three phase |
| Mains Voltage | (7) 525 - 690 VAC * |
| Enclosure | (E21) IP21 / Type 1 |
| RFI Filter | (B2) 12 Pulse + Class A2 RFI |
| Brake - Safe Stop | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (C) Coated PCB |
| Mains Option | (3) Mains Disconnect + Fuse |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AX) No A Option |
| B Option | (BK) MCB-101 General purp. I/O |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (D0) MCB-107 24V DC backup |
| Frame Size | F9 |
| Typecode Part 1 | FC-202P500T7E21B2XGC |
| Typecode Part 2 | 3XXSXXXXAXBKCXXXXD0 |
| Product Catalog | Global (Standard) |
| Sales Organization | 2200 |
| Vendor | Factory US |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 447.300 |
| Calculated Net Weight [kg] | 447.000 |
