Description
VLT HVAC Drive FC-102 1.5 KW / 2.0 HP, 380-480 VAC, Safe Stop, IP55 / Type 12 A4 Frame, RFI Class A1/B (C1), No A Option, MCB-112 PTC Therm. Card, Not coated PCB, Mains Disconnect FC-102P1K5T4Z55H1TNX1XXSXXXXAXB2CXXXXDX
Product Details 134H6209

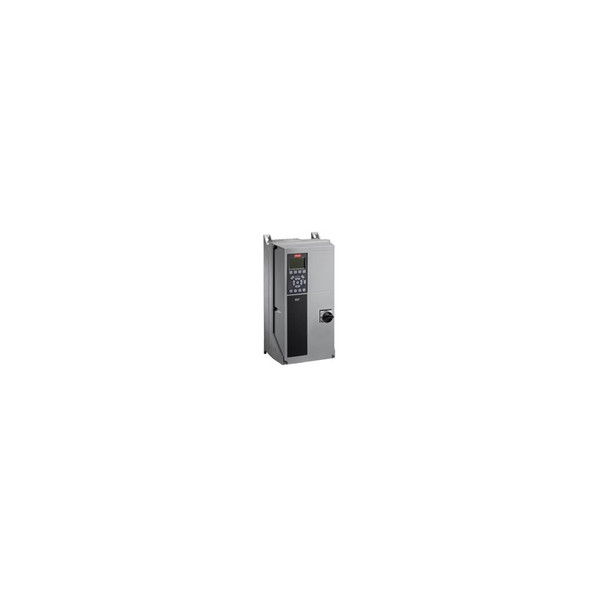

VLT HVAC Drive FC 102
Danfoss VLT HVAC Drive FC-102 Drive is dedicated to ventilation, heating, and refrigeration applications. With a wide range of powerful standard and optional features, the Drive provides the lowest overall cost of ownership.| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT HVAC Drive FC- |
| Series | 102 |
| Power Rating | (P1K5) 1.5 KW / 2.0 HP |
| Phase | (T) Three phase |
| Mains Voltage | (4) 380 - 480 VAC |
| Enclosure | (Z55) IP55 / Type 12 A4 Frame |
| RFI Filter | (H1) RFI Class A1/B (C1) |
| Brake - Safe Stop | (T) Safe Stop |
| LCP | (N) Numerical Loc. Cont. Panel |
| Coating PCB | (X) Not coated PCB |
| Mains Option | (1) Mains Disconnect |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AX) No A Option |
| B Option | (B2) MCB-112 PTC Therm. Card |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | A4 |
| Product Catalog | Global (Standard) |
| Typecode Part 1 | FC-102P1K5T4Z55H1TNX |
| Typecode Part 2 | 1XXSXXXXAXB2CXXXXDX |
| Sales Organization | 2200 |
| Vendor | Factory DK |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 10.000 |
| Calculated Net Weight [kg] | 9.700 |
