Description

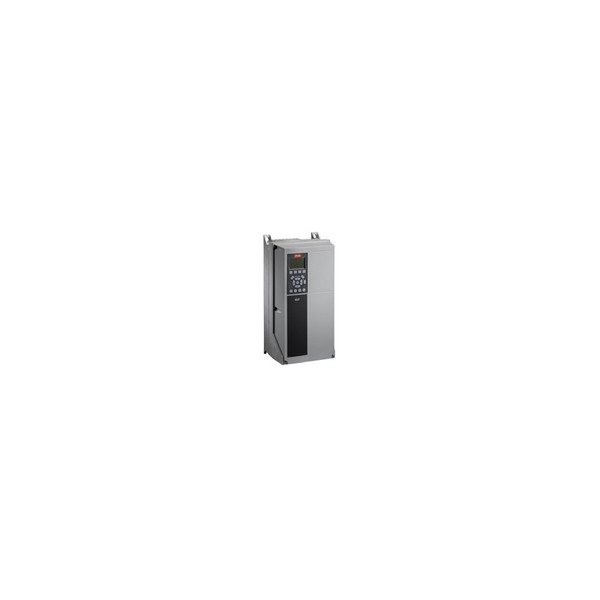

VLT Automation Drive FC-302 2.2 KW / 3.0 HP, 380-500 VAC, IP55 / Type 12 A4 Frame,RFI Class A1/B (C1), No brake chopper FC-302P2K2T5Z55H1XGCXXXSXXXXA0B2CXXXXDX
Product Details‚ 134L0020
VLT AutomationDrive FC-300
The VLT AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary to servo like applications on any machine or production line. The modular open-technology platform, on which the VLT AutomationDrive is built, makes it exceptionally adaptable and programmable.
Its configurable, user-friendly interface supports local languages and letters.The VLT AutomationDrive series offer an intelligent plug-and-play technology and unmatched reliability making drive operation pure childs play.
| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT AutomationDrive FC- |
| Series | 302 |
| Power Rating | (P2K2) 2.2 KW / 3.0 HP |
| Phase | (T) Three phase |
| Mains Voltage | (5) 380 - 500 VAC |
| Enclosure | (Z55) IP55 / Tipo 12 A4 Frame |
| RFI Filter | (H1) RFI Class A1/B (C1) |
| Brake - Safe Stop | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (C) Coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (A0) PROFIBUS DP MCA 101 |
| B Option | (B2) MCB-112 PTC Therm. Card |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | A4 |
| Tipocode Part 1 | FC-302P2K2T5Z55H1XGC |
| Tipocode Part 2 | XXXSXXXXA0B2CXXXXDX |
| Product Catalog | Global (Standard) |
| Vendor | Factory DK |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 8.300 |
| Calculated Net Weight [kg] | 8.000 |
