Description
VLT AQUA Drive FC-202 250 KW / 350 HP, 525 - 690 VAC *, IP54 / Type 12, RFI Class A2 (C3), No brake chopper FC-202N250T7E54H2XGR7XXSXXXXAQBKCXXXXDX
Product Details‚ 134U0304

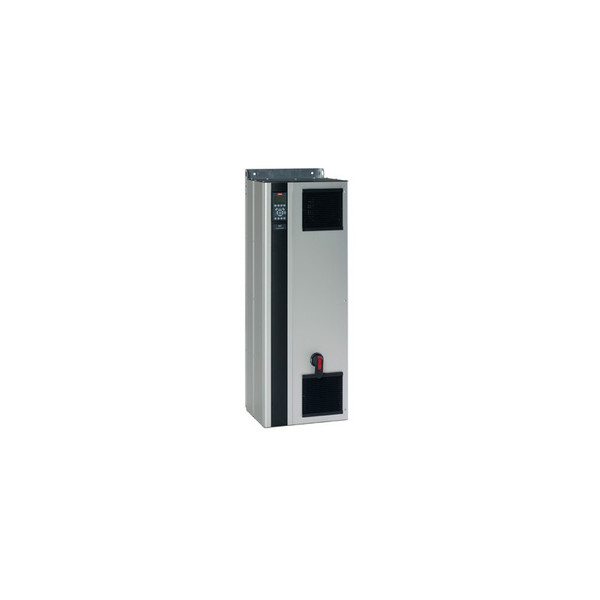

VLT AQUA Drive FC-202
Danfoss VLT AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful standard and optional features, the VLT AQUA Drive provides the lowest overall cost of ownership for water and wastewater applications.
| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT AQUA Drive FC- |
| Series | 202 |
| Power Rating | (N250) 250 KW / 350 HP |
| Phase | (T) Three phase |
| Mains Voltage | (7) 525 - 690 VAC * |
| Enclosure | (E54) IP54 / Tipo 12 |
| RFI Filter | (H2) RFI Class A2 (C3) |
| Brake - Safe Stop | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (R)Coated PCB 3C3 + Ruggedised |
| Mains Option | (7) Fuse |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AQ) Modbus TCP MCA 122 |
| B Option | (BK) MCB-101 General purp. I/O |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | D2H |
| Tipocode Part 1 | FC-202N250T7E54H2XGR |
| Tipocode Part 2 | 7XXSXXXXAQBKCXXXXDX |
| Product Catalog | Global (Standard) |
| Vendor | Factory US |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 125.300 |
| Calculated Net Weight [kg] | 125.000 |
