Description
VLT HVAC Drive FC-102 5.5 KW / 7.5 HP, 200-240 VAC, No brake chopper, IP21 / Type 1 Backplate, RFI Class A2 (C3), No A Option, No B Option, Not coated PCB, Mains Disconnect FC-102P5K5T2P21H2XGX1XXSXXXXAXBXCXXXXDX
Product Details 131F0792

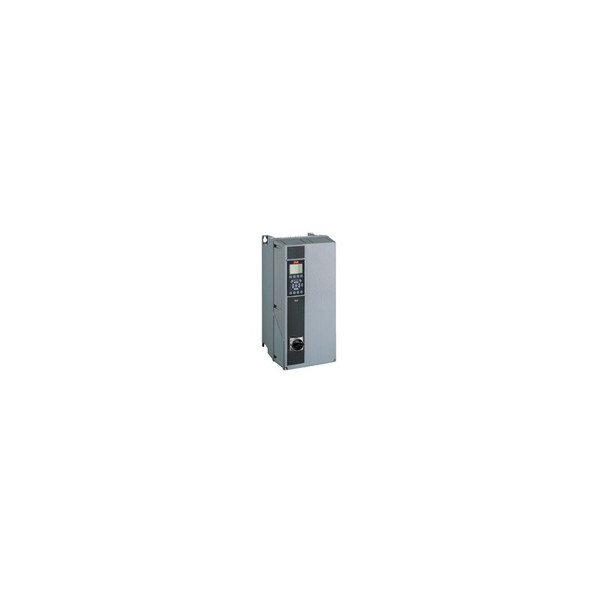

VLT HVAC Drive FC 102
Danfoss VLT HVAC Drive FC-102 Drive is dedicated to ventilation, heating, and refrigeration applications. With a wide range of powerful standard and optional features, the Drive provides the lowest overall cost of ownership.| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT HVAC Drive FC- |
| Series | 102 |
| Power Rating | (P5K5) 5.5 KW / 7.5 HP |
| Phase | (T) Three phase |
| Mains Voltage | (2) 200 - 240 VAC |
| Enclosure | (P21) IP21 / Type 1 Backplate |
| RFI Filter | (H2) RFI Class A2 (C3) |
| Brake - Safe Stop | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (X) Not coated PCB |
| Mains Option | (1) Mains Disconnect |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AX) No A Option |
| B Option | (BX) No B Option |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | B1 |
| Product Catalog | Global (Standard) |
| Typecode Part 1 | FC-102P5K5T2P21H2XGX |
| Typecode Part 2 | 1XXSXXXXAXBXCXXXXDX |
| Sales Organization | 2200 |
| Vendor | Factory DK |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 23.500 |
| Calculated Net Weight [kg] | 23.200 |
