Description
VLT Decentral Drive FCD 3020.75 kW / 1.0 HP, 380-480VAC (Three phased), Std. White IP66/NEMA4X,RFI Class A1/C2, No brake, Compl. large stand alone, 40 mm brackets,Metric threads, Service switch mains + T, With display connector FCD302PK75T4W66H1X3FMKCXXXXXA0BXXXXXXD0
Product Details‚ 135N0612

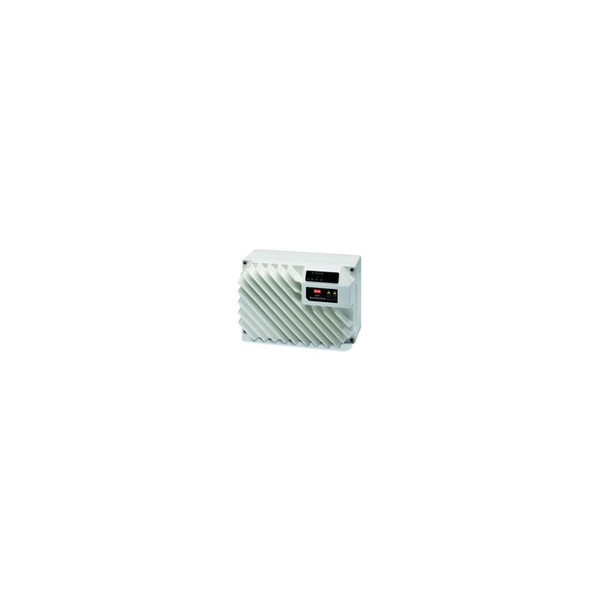

VLT Decentral Drive FCD 302
The VLT Decentral Drive FCD 302 is a complete frequency converter
designed for decentral mounting. It can be mounted on the machine/wall -
close to the motor - or directly on the motor.
The decentral design reduces the need for central control panels and
space-consuming motor control cabinets are eliminated. In addition, the
need for long screened motor cables is significantly reduced.
Product Data:
0.75 kW / 1.0 HP, 380-480VAC (Three phased), Std. White IP66/NEMA4X
| Characteristic | Value |
|---|---|
| Product Group | VLT Decentral Drive FCD |
| VLT Series | (302) 302 |
| Power Rating | (PK75) 0.75 kW / 1.0 HP |
| Mains Voltage | (T4) 380-480VAC (Three phased) |
| Enclosure | (W66) Std. White IP66/NEMA4X |
| RFI Filter | (H1) RFI Class A1/C2 |
| Brake | (X) No brake |
| Hardware Configuration | (3) Compl. large stand alone |
| Brackets | (F) 40 mm brackets |
| Threads | (M) Metric threads |
| Switch Option | (K) Service switch mains + T |
| Display | (C) With display connector |
| Sensor Plugs | (X) No sensor plugs |
| Motor Plug | (X) No motor plug |
| Mains Plug | (X) No mains plug |
| Fieldbus Plug | (X) No fieldbus plug |
| Reserved | (X) Reserved |
| A Option | (A0) Profibus DP |
| B Option | (BX) No B option |
| Reserved for SW | (XXXXX) Reserved for SW |
| D Option | (D0) 24VDC back-up input |
| Tipocode Part 1 | FCD302PK75T4W66H1X3FMKCXXXXX |
| Tipocode Part 2 | A0BXXXXXXD0 |
| Product Catalog | Global (Standard) |
| Vendor Region | Southern Europe |
| Vendor | Factory DK |
| Calculated Gross Weight | 14.200 |
| Calculated Net Weight [kg] | 13.900 |
