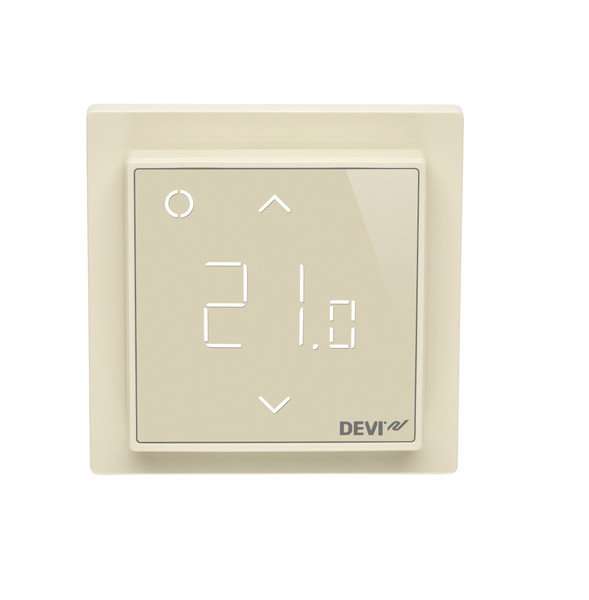

140F1142 Danfoss DEVIreg™ Smart

Description

Description

Product details

Gross weight	0.26 kg
Net weight	0.26 kg

EAN

5703466239643

Gross weight	0.26 kg
Net weight	0.26 kg
EAN	5703466239643

Ambient temperature [°C] [Max]	30 °C
Ambient temperature [°C] [Min]	0 °C
Ball presure test temperature [°C]	75 °C
Certification company	CE EAC Intertek Semko
Colour	Ivory 1013
Depth [mm]	44 mm
Description	DEVIreg Smart ivory
DIN mounting	No
Element IP Class	21
Frost protection [°C]	5 °C
Height [mm]	85 mm
Hysteresis (+/-)	0.2
Inductive load	cos φ= 0.3 max 1A
Package depth [mm]	110 mm
Package height [mm]	84 mm
Package width [mm]	108 mm
Pollution degree	2
Product group	Thermostats
Product name	DEVIreg™ Smart ivory
Regulation type	Hysteresis
Relay switch	1-pole
Resistive load max [A]	16
Sensor definition point [Ohm/°C]	15kΩ / 25°C

Sensor type	Room + Floor
Software class	A
Standby power consumption [W] [Max]	0.4 W
Storage temperature [°C] [Max]	65 °C
Storage temperature [°C] [Min]	-20 °C
Supply voltage range [V] AC	230 V
Supply voltage range [V] AC [Max]	240 V
Supply voltage range [V] AC [Min]	220 V
Temperature - floor [°C] [Max]	45 °C
Temperature - floor [°C] [Min]	5 °C
Temperature - room [°C] [Max]	35 °C
Temperature - room [°C] [Min]	5 °C
Temperature limiter [°C] [Max]	45 °C
Temperature limiter [°C] [Min]	5 °C
Temperature max. limiter [°C] [Max]	35 °C
Temperature max. limiter [°C] [Min]	20 °C
Temperature min. limiter [°C] [Max]	35 °C
Temperature min. limiter [°C] [Min]	10 °C
Terminal cable size max [mm²]	2 x 2.5
Type	DEVIreg™ Smart
Warranty [Year]	5
Width [mm]	85 mm

Ambient temperature [°C] [Max]	30 °C
Ambient temperature [°C] [Min]	0 °C
Ball presure test temperature [°C]	75 °C
Certification company	CE EAC Intertek Semko
Colour	Ivory 1013
Depth [mm]	44 mm
Description	DEVIreg Smart ivory
DIN mounting	No
Element IP Class	21
Frost protection [°C]	5 °C
Height [mm]	85 mm
Hysteresis (+/-)	0.2
Inductive load	cos φ= 0.3 max 1A
Package depth [mm]	110 mm
Package height [mm]	84 mm
Package width [mm]	108 mm
Pollution degree	2
Product group	Thermostats
Product name	DEVIreg™ Smart ivory
Regulation type	Hysteresis
Relay switch	1-pole
Resistive load max [A]	16
Sensor definition point [Ohm/°C]	15kΩ / 25°C
Sensor type	Room + Floor
Software class	A
Standby power consumption [W] [Max]	0.4 W
Storage temperature [°C] [Max]	65 °C
Storage temperature [°C] [Min]	-20 °C
Supply voltage range [V] AC	230 V
Supply voltage range [V] AC [Max]	240 V
Supply voltage range [V] AC [Min]	220 V
Temperature - floor [°C] [Max]	45 °C
Temperature - floor [°C] [Min]	5 °C
Temperature - room [°C] [Max]	35 °C
Temperature - room [°C] [Min]	5 °C
Temperature limiter [°C] [Max]	45 °C
Temperature limiter [°C] [Min]	5 °C
Temperature max. limiter [°C] [Max]	35 °C
Temperature max. limiter [°C] [Min]	20 °C
Temperature min. limiter [°C] [Max]	35 °C
Temperature min. limiter [°C] [Min]	10 °C
Terminal cable size max [mm²]	2 x 2.5
Type	DEVIreg™ Smart
Warranty [Year]	5
Width [mm]	85 mm
