Description
Type: Inspection kit
Product details
| Gross weight | 1.83 kg |
| Net weight | 1.5 kg |
| EAN | 5702428840927 |
| Gross weight | 1.83 kg |
| Net weight | 1.5 kg |
| EAN | 5702428840927 |
| Body material | Stainless steel |
| Brand | SVL Flexline |
| Category | Art. 3, par. 3 |
| Colour Paint | Reddish brown |
| Connection material | Stainless steel |
| Connection standard | EN 10220 |
| Cv value [gal/min] | 8.12 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | I |
| Inlet connection size [in] | 1/2 in |
| Inlet connection size [mm] | 15 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 7 m3/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Neck | Short |
| Outlet connection size [in] | 1/2 in |
| Outlet connection size [mm] | 15 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | SVA-S SS / SVA-L SS |
| Product accessories | SVL Flexline accessories |

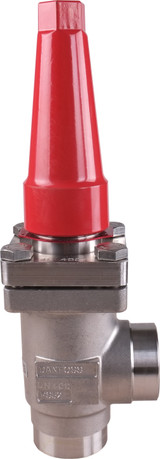

| Product description | Stop Valve |
| Product family name | SVA SS angle |
| Product group | Shut-off and regulating valves |
| Product name | Shut-off valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R113 R114 R1233zd(E) R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) R134a R152a R170 R22 R227ea R23 R236fa R290 R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R417A R421A R422A R422B R422D R427A R438A R444B R447A R448A R449A R449B R450A R452A R454B R455A R502 R503 R507 R513A R600 R600a R717 R744 RE170 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | SVA-S SS 15 |
| Valve version | Standard version |
| Body material | Stainless steel |
| Brand | SVL Flexline |
| Category | Art. 3, par. 3 |
| Colour Paint | Reddish brown |
| Connection material | Stainless steel |
| Connection standard | EN 10220 |
| Cv value [gal/min] | 8.12 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | I |
| Inlet connection size [in] | 1/2 in |
| Inlet connection size [mm] | 15 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 7 m3/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Neck | Short |
| Outlet connection size [in] | 1/2 in |
| Outlet connection size [mm] | 15 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | SVA-S SS / SVA-L SS |
| Product accessories | SVL Flexline accessories |
| Product description | Stop Valve |
| Product family name | SVA SS angle |
| Product group | Shut-off and regulating valves |
| Product name | Shut-off valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R113 R114 R1233zd(E) R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) R134a R152a R170 R22 R227ea R23 R236fa R290 R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R417A R421A R422A R422B R422D R427A R438A R444B R447A R448A R449A R449B R450A R452A R454B R455A R502 R503 R507 R513A R600 R600a R717 R744 RE170 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | SVA-S SS 15 |
| Valve version | Standard version |
