Description
Pressure setting [bar]: 28, Connection type: G, Inlet connection size [in]: 3/4, Outlet connection size [in]: 1, Pressure certificate: TÃœV certificate included
Product details
| Gross weight | 2 kg |
| Net weight | 1.93 kg |
| EAN | 5702428193665 |
| Gross weight | 2 kg |
| Net weight | 1.93 kg |
| EAN | 5702428193665 |
| Approval | CE EAC |
| Category | IV |
| Certified Coef of Disc | 0.73 kg |
| Connection Internal/External | External |
| Connection size [in] | 1/2 in |
| Connection size [mm] | 15 mm |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Direction | Angleway |
| Flow area [in2] | 0.206 in2 |
| Flow area [mm2] | 133 mm2 |
| Flow diameter [in] | 0.512 in |
| Flow diameter [mm] | 13 mm |
| Fluid Group | I |
| Inlet connection size [in] | 3/4 |
| Nominal diameter | DN < 15 |
| Outlet connection size [in] | 1 |
| Packing format | Single pack |
| Pressure certificate | TÃœV certificate included |
| Pressure setting [bar] | 28 bar |
| Pressure setting [psig] | 406 psig |

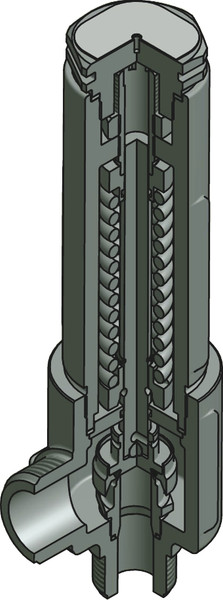

| Product description | Safety Relief Valve |
| Product group | Safety relief valves |
| Product name | Safety relief valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R170 R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R600 R600a R717 R744 |
| Temperature range [°C] [Max] | 100 °C |
| Temperature range [°C] [Min] | -30 °C |
| Temperature range [°F] [Max] | 212 °F |
| Temperature range [°F] [Min] | -22 °F |
| Type | SFA 15 |
| Approval | CE EAC |
| Category | IV |
| Certified Coef of Disc | 0.73 kg |
| Connection Internal/External | External |
| Connection size [in] | 1/2 in |
| Connection size [mm] | 15 mm |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Direction | Angleway |
| Flow area [in2] | 0.206 in2 |
| Flow area [mm2] | 133 mm2 |
| Flow diameter [in] | 0.512 in |
| Flow diameter [mm] | 13 mm |
| Fluid Group | I |
| Inlet connection size [in] | 3/4 |
| Nominal diameter | DN < 15 |
| Outlet connection size [in] | 1 |
| Packing format | Single pack |
| Pressure certificate | TÃœV certificate included |
| Pressure setting [bar] | 28 bar |
| Pressure setting [psig] | 406 psig |
| Product description | Safety Relief Valve |
| Product group | Safety relief valves |
| Product name | Safety relief valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R170 R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R600 R600a R717 R744 |
| Temperature range [°C] [Max] | 100 °C |
| Temperature range [°C] [Min] | -30 °C |
| Temperature range [°F] [Max] | 212 °F |
| Temperature range [°F] [Min] | -22 °F |
| Type | SFA 15 |
Product details
| Gross weight | 2 kg |
| Net weight | 1.93 kg |
| EAN | 5702428193665 |
| Gross weight | 2 kg |
| Net weight | 1.93 kg |
| EAN | 5702428193665 |
| Approval | CE EAC |
| Category | IV |
| Certified Coef of Disc | 0.73 kg |
| Connection Internal/External | External |
| Connection size [in] | 1/2 in |
| Connection size [mm] | 15 mm |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Direction | Angleway |
| Flow area [in2] | 0.206 in2 |
| Flow area [mm2] | 133 mm2 |
| Flow diameter [in] | 0.512 in |
| Flow diameter [mm] | 13 mm |
| Fluid Group | I |
| Inlet connection size [in] | 3/4 |
| Nominal diameter | DN < 15 |
| Outlet connection size [in] | 1 |
| Packing format | Single pack |
| Pressure certificate | TÃœV certificate included |
| Pressure setting [bar] | 28 bar |
| Pressure setting [psig] | 406 psig |
| Product description | Safety Relief Valve |
| Product group | Safety relief valves |
| Product name | Safety relief valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R170 R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R600 R600a R717 R744 |
| Temperature range [°C] [Max] | 100 °C |
| Temperature range [°C] [Min] | -30 °C |
| Temperature range [°F] [Max] | 212 °F |
| Temperature range [°F] [Min] | -22 °F |
| Type | SFA 15 |
| Approval | CE EAC |
| Category | IV |
| Certified Coef of Disc | 0.73 kg |
| Connection Internal/External | External |
| Connection size [in] | 1/2 in |
| Connection size [mm] | 15 mm |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Direction | Angleway |
| Flow area [in2] | 0.206 in2 |
| Flow area [mm2] | 133 mm2 |
| Flow diameter [in] | 0.512 in |
| Flow diameter [mm] | 13 mm |
| Fluid Group | I |
| Inlet connection size [in] | 3/4 |
| Nominal diameter | DN < 15 |
| Outlet connection size [in] | 1 |
| Packing format | Single pack |
| Pressure certificate | TÃœV certificate included |
| Pressure setting [bar] | 28 bar |
| Pressure setting [psig] | 406 psig |
| Product description | Safety Relief Valve |
| Product group | Safety relief valves |
| Product name | Safety relief valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R170 R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R600 R600a R717 R744 |
| Temperature range [°C] [Max] | 100 °C |
| Temperature range [°C] [Min] | -30 °C |
| Temperature range [°F] [Max] | 212 °F |
| Temperature range [°F] [Min] | -22 °F |
| Type | SFA 15 |
