Description
VLT Compact Starter MCD 200 90kW 170A:4-6:594, Three phase 200-575 VAC, Control Voltage:24 VAC/VDC MCD201090T6CV1VLT
Product Details‚ 175G5207

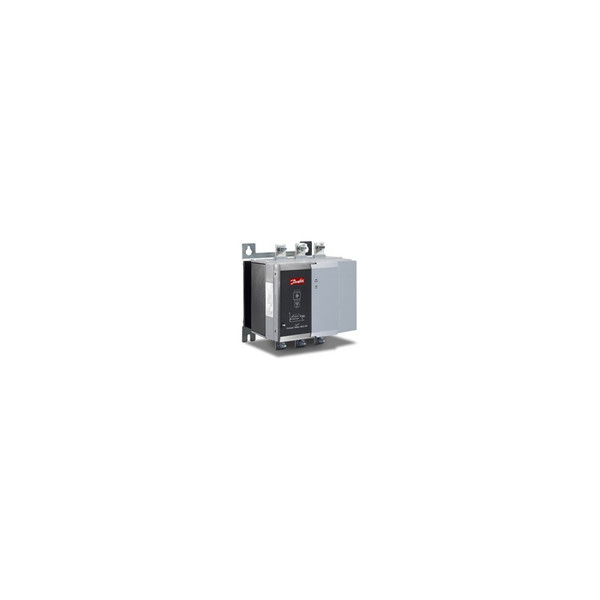

VLT Compact Starter MCD 200
VLT Compact Starter MCD 200 from Danfoss includes two families of soft starters in the power range from 7.5‚ 110 kW.
The series offer easy DIN rail mounting for sizes up to 30 kW, 2-wire or 3-wire start/stop control and excellent starting duty (4 x Ie for 6 seconds).
Heavy starting ratings at 4x Ie for 20 seconds.
Compatible with grounded delta power systems.
VLT Compact Starter MCD 200
90 kW 170A:4-6: 594, Three phase 200-575 VAC, IP20, C-Frame
| Characteristic | Value |
|---|---|
| Product Group | VLT Soft Starter MCD |
| MCD Series | (201) 201 |
| Power Rating | (090) 90 kW 170A:4-6: 594 |
| Phase | (T) Three phase |
| Mains Voltage | (6) 200-575 VAC |
| Control Supply Voltage | (CV1) 24 VAC/VDC |
| Frame Size | (C) C-Frame |
| Tipocode Part 1 | MCD201090T6CV1 |
| Product Catalog | Global (Standard) |
| Vendor Region | Southern Europe |
| Vendor | Factory DK |
| Calculated Gross Weight | 13.800 |
| Calculated Net Weight [kg] | 6.500 |
