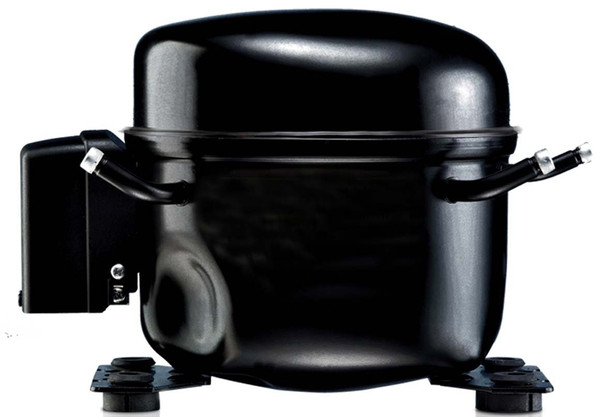

Description
Refrigerant: R134a, Segment usage: Refrigeration LT, Compressor power supply [V/Ph/Hz]: 115/1/60
Product details
| Gross weight | 7.2 kg |
| Net weight | 7.2 kg |
| EAN | 5702428583787 |
| Gross weight | 7.2 kg |
| Net weight | 7.2 kg |
| EAN | 5702428583787 |
| Application energy level | Standard |
| Applications | LBP |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 4.9 Ohm |
| Base plate type | US small |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V/Ph/Hz] | 115/1/60 |
| Configuration code | Single |
| Cut in current LST [A] | 15.2 A |
| Description | TL3F |
| Discharge connection angle [°] | 28 ° |
| Discharge connection comments | Al-cap |
| Discharge connection diameter [mm] | 5 mm |
| Discharge connection material | Cu-plated steel |
| Economizer | No |
| Free gas volume [cm3] | 1600 cm3 |
| Frequency [Hz] | 60 |
| Height from baseplate [mm] | 159 mm |
| High value of nominal voltage at 60Hz [V] | 115 V |
| High value of voltage range at 60Hz [V] | 127 V |
| Length [mm] | 222 mm |
| Liquid injection | No |
| Low value of nominal voltage at 60Hz [V] | 115 V |
| Low value of voltage range at 60Hz [V] | 98 V |
| LRA LST [A] | 6.3 A |
| Main winding resistance for single-phase compressors [Ohm] | 6.3 Ohm |
| Model number | TL3F |
| Motor type | RSIR |
| No. of phases (compressor) | 1 |
| Oil quantity [cm3] | 180 cm3 |
| Oil type | POE |
| Packing format | Industrial pack |
| Packing quantity | 125 |
| Process connection angle [°] | 32 ° |
| Process connection comments | Al-cap |
| Process connection diameter [mm] | 6.5 mm |
| Process connection material | Cu-plated steel |
| Refrigerant | R134a |
| Refrigerant charge [kg] [Max] | 0.4 kg |
| RLA | 1.40 A |
| Rotational speed at 60Hz [rpm] | 3600 rpm |
| Segment usage | Refrigeration LT |
| Suction connection angle [°] | 30 ° |
| Suction connection comments | Al-cap |
| Suction connection diameter [mm] | 6.5 mm |
| Suction connection material | Cu-plated steel |
| Swept volume [cm3] | 3.13 cm3 |
| Technology | Reciprocating |
| Total height [mm] | 163 mm |
| Type | TL |
| Type designation | Compressor |
| Voltage 60Hz [V] | 115 V |
| Voltage 60Hz [V] [Max] | 115 V |
| Width [mm] | 157 mm |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
