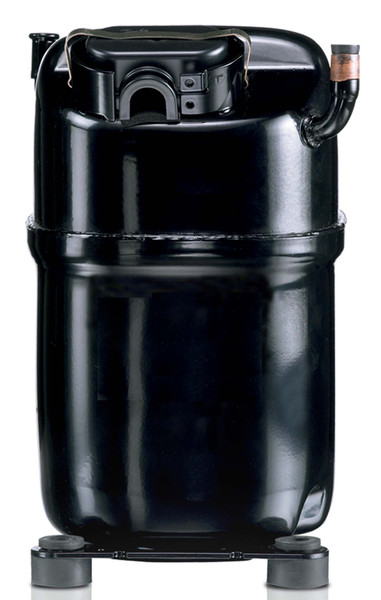

195B0438 Danfoss Reciprocating compressor, GS34MLX

Description

Description

Product details

Gross weight

24.55 kg

Net weight

24.55 kg

Gross weight	24.55 kg
Net weight	24.55 kg

Application energy level	Standard MBP
Applications	MBP
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]	5.8 Ohm
Brand technique	Reciprocating compressor
Capacity control	Fixed speed
Colour	Black
Compressor power supply [V/Ph/Hz]	220-240/1/50
Configuration code	Single
Cut in current HST [A]	46 A
Description	GS34MLX
Discharge connection angle [Â°]	19 Â°
Discharge connection diameter [mm]	9.7 mm
Discharge connection height [mm]	234 mm
Discharge connection material	Copper
Economizer	No
Free gas volume [cm3]	3540 cm3
Frequency [Hz]	50
Height from baseplate [mm]	247 mm
High value of nominal voltage at 50Hz [V]	240 V
High value of voltage range at 50Hz [V]	255 V
Length [mm]	235 mm
Liquid injection	No
Low value of nominal voltage at 50Hz [V]	220 V
Low value of voltage range at 50Hz [V]	187 V
LRA HST 60Hz [A]	46 A
LRA HST [A]	46 A
Main winding resistance for single-phase compressors [Ohm]	1.5 Ohm
Model number	GS34MLX

Motor type	CSR
No. of phases (compressor)	1
Oil quantity [cm3]	900 cm3
Oil type	POE
Packing format	Industrial pack
Packing quantity	48
Process connection angle [Â°]	90 Â°
Process connection diameter [mm]	6.5 mm
Process connection height [mm]	234 mm
Process connection material	Copper
Refrigerant	R404A R507
Refrigerant charge [kg] [Max]	2 kg
RLA	9.30 A
Rotational speed at 50Hz [rpm]	3000 rpm
Segment usage	Refrigeration MT
Speed Platform	Fixed-speed
Suction connection angle [Â°]	90 Â°
Suction connection diameter [mm]	16.1 mm
Suction connection height [mm]	234 mm
Suction connection material	Copper
Swept volume [cm3]	33.8 cm3
Technology	Reciprocating
Total height [mm]	259 mm
Type	GS
Type designation	Compressor
Voltage 50Hz [V]	220 V
Voltage 50Hz [V] [Max]	240 V
Width [mm]	173 mm

Application energy level	Standard MBP
Applications	MBP
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]	5.8 Ohm
Brand technique	Reciprocating compressor
Capacity control	Fixed speed
Colour	Black
Compressor power supply [V/Ph/Hz]	220-240/1/50
Configuration code	Single
Cut in current HST [A]	46 A
Description	GS34MLX
Discharge connection angle [Â°]	19 Â°
Discharge connection diameter [mm]	9.7 mm
Discharge connection height [mm]	234 mm
Discharge connection material	Copper
Economizer	No
Free gas volume [cm3]	3540 cm3
Frequency [Hz]	50
Height from baseplate [mm]	247 mm
High value of nominal voltage at 50Hz [V]	240 V
High value of voltage range at 50Hz [V]	255 V
Length [mm]	235 mm
Liquid injection	No
Low value of nominal voltage at 50Hz [V]	220 V
Low value of voltage range at 50Hz [V]	187 V
LRA HST 60Hz [A]	46 A
LRA HST [A]	46 A
Main winding resistance for single-phase compressors [Ohm]	1.5 Ohm
Model number	GS34MLX
Motor type	CSR
No. of phases (compressor)	1
Oil quantity [cm3]	900 cm3
Oil type	POE
Packing format	Industrial pack
Packing quantity	48
Process connection angle [Â°]	90 Â°
Process connection diameter [mm]	6.5 mm
Process connection height [mm]	234 mm
Process connection material	Copper
Refrigerant	R404A R507
Refrigerant charge [kg] [Max]	2 kg
RLA	9.30 A
Rotational speed at 50Hz [rpm]	3000 rpm
Segment usage	Refrigeration MT
Speed Platform	Fixed-speed
Suction connection angle [Â°]	90 Â°
Suction connection diameter [mm]	16.1 mm
Suction connection height [mm]	234 mm
Suction connection material	Copper
Swept volume [cm3]	33.8 cm3
Technology	Reciprocating
Total height [mm]	259 mm
Type	GS
Type designation	Compressor
Voltage 50Hz [V]	220 V
Voltage 50Hz [V] [Max]	240 V
Width [mm]	173 mm

Refrigerant: R404A; R507, Segment usage: Refrigeration MT, Compressor power supply [V/Ph/Hz]: 220-240/1/50

Product details

Gross weight

24.55 kg

Net weight

24.55 kg

Gross weight	24.55 kg
Net weight	24.55 kg

Application energy level	Standard MBP
Applications	MBP
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]	5.8 Ohm
Brand technique	Reciprocating compressor
Capacity control	Fixed speed
Colour	Black
Compressor power supply [V/Ph/Hz]	220-240/1/50
Configuration code	Single
Cut in current HST [A]	46 A
Description	GS34MLX
Discharge connection angle [Â°]	19 Â°
Discharge connection diameter [mm]	9.7 mm
Discharge connection height [mm]	234 mm
Discharge connection material	Copper
Economizer	No
Free gas volume [cm3]	3540 cm3
Frequency [Hz]	50
Height from baseplate [mm]	247 mm
High value of nominal voltage at 50Hz [V]	240 V
High value of voltage range at 50Hz [V]	255 V
Length [mm]	235 mm
Liquid injection	No
Low value of nominal voltage at 50Hz [V]	220 V
Low value of voltage range at 50Hz [V]	187 V
LRA HST 60Hz [A]	46 A
LRA HST [A]	46 A
Main winding resistance for single-phase compressors [Ohm]	1.5 Ohm
Model number	GS34MLX

Motor type	CSR
No. of phases (compressor)	1
Oil quantity [cm3]	900 cm3
Oil type	POE
Packing format	Industrial pack
Packing quantity	48
Process connection angle [Â°]	90 Â°
Process connection diameter [mm]	6.5 mm
Process connection height [mm]	234 mm
Process connection material	Copper
Refrigerant	R404A R507
Refrigerant charge [kg] [Max]	2 kg
RLA	9.30 A
Rotational speed at 50Hz [rpm]	3000 rpm
Segment usage	Refrigeration MT
Speed Platform	Fixed-speed
Suction connection angle [Â°]	90 Â°
Suction connection diameter [mm]	16.1 mm
Suction connection height [mm]	234 mm
Suction connection material	Copper
Swept volume [cm3]	33.8 cm3
Technology	Reciprocating
Total height [mm]	259 mm
Type	GS
Type designation	Compressor
Voltage 50Hz [V]	220 V
Voltage 50Hz [V] [Max]	240 V
Width [mm]	173 mm

Application energy level	Standard MBP
Applications	MBP
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]	5.8 Ohm
Brand technique	Reciprocating compressor
Capacity control	Fixed speed
Colour	Black
Compressor power supply [V/Ph/Hz]	220-240/1/50
Configuration code	Single
Cut in current HST [A]	46 A
Description	GS34MLX
Discharge connection angle [Â°]	19 Â°
Discharge connection diameter [mm]	9.7 mm
Discharge connection height [mm]	234 mm
Discharge connection material	Copper
Economizer	No
Free gas volume [cm3]	3540 cm3
Frequency [Hz]	50
Height from baseplate [mm]	247 mm
High value of nominal voltage at 50Hz [V]	240 V
High value of voltage range at 50Hz [V]	255 V
Length [mm]	235 mm
Liquid injection	No
Low value of nominal voltage at 50Hz [V]	220 V
Low value of voltage range at 50Hz [V]	187 V
LRA HST 60Hz [A]	46 A
LRA HST [A]	46 A
Main winding resistance for single-phase compressors [Ohm]	1.5 Ohm
Model number	GS34MLX
Motor type	CSR
No. of phases (compressor)	1
Oil quantity [cm3]	900 cm3
Oil type	POE
Packing format	Industrial pack
Packing quantity	48
Process connection angle [Â°]	90 Â°
Process connection diameter [mm]	6.5 mm
Process connection height [mm]	234 mm
Process connection material	Copper
Refrigerant	R404A R507
Refrigerant charge [kg] [Max]	2 kg
RLA	9.30 A
Rotational speed at 50Hz [rpm]	3000 rpm
Segment usage	Refrigeration MT
Speed Platform	Fixed-speed
Suction connection angle [Â°]	90 Â°
Suction connection diameter [mm]	16.1 mm
Suction connection height [mm]	234 mm
Suction connection material	Copper
Swept volume [cm3]	33.8 cm3
Technology	Reciprocating
Total height [mm]	259 mm
Type	GS
Type designation	Compressor
Voltage 50Hz [V]	220 V
Voltage 50Hz [V] [Max]	240 V
Width [mm]	173 mm
