Description

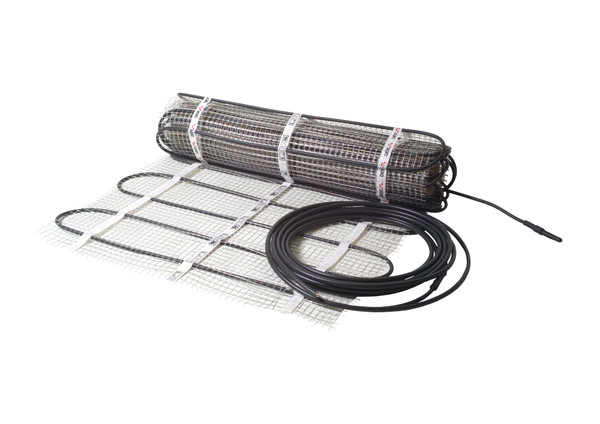

DEVIasphalt™ 300T 1775W 400V, 0,5 x 11,8m
Product details
| Gross weight | 6.76 kg |
| Net weight | 6.69 kg |
| EAN | 5703466192702 |
| Gross weight | 6.76 kg |
| Net weight | 6.69 kg |
| EAN | 5703466192702 |
| Bi-conductor screen [mm²] | 1 |
| Cable diameter [mm] | 7 mm |
| Cable resistance [Ohm] | 90.1 Ohm |
| Cable screen | Alufoil 100% |
| Cable type | Twin conductor |
| Certification company | Intertek Semko |
| Cold lead | Yes |
| Cold lead conductor quantity | 2 |
| Cold lead length [m] | 10 m |
| Cold lead quantity | 1 |
| Cold lead size [mm²] | 2.5 mm2 |
| Cold lead type | DTWK |
| Conductor insulation | FEP |
| Coverage area [m²] | 5.9 m2 |
| Deformation strength [N] | 1500 N |
| Description | DEVIasphalt™ 300T 1775W 400V, 0,5 x 11,8m |
| Element IP Class | IPX7 |
| Filler material | XPLE |
| Flame retardant | Yes |
| Heating output [W] | 1775 W |
| Heating principle | Serial resistive |
| Installation temperature [°C] [Min] | -5 °C |
| Lead free | Yes |
| Mat length [m] | 11.8 m |
| Mat output [W/m²] | 300 W/m2 |
| Mat width [m] | 0.5 m |
| Non operating temperature [°C] [Max] | 85 °C |
| Operating temperature [°C] [Max] | 60 °C |
| Outer sheath | XPLO |
| Outer sheath colour | Black |
| Package depth [mm] | 500 mm |
| Package height [mm] | 180 mm |
| Package width [mm] | 180 mm |
| Product group | Heating Mats |
| Product name | DEVIasphalt™ 300T |
| Pulling strength [N] | 300 N |
| Short period temperature [°C] [Max] | 240 °C |
| Supply voltage range [V] AC | 400 V |
| Thickness [mm] | 7 mm |
| Type | DEVIasphalt™ 300T |
| UV Protected | Yes |
| Warranty [Year] | 20 |
| Bi-conductor screen [mm²] | 1 |
| Cable diameter [mm] | 7 mm |
| Cable resistance [Ohm] | 90.1 Ohm |
| Cable screen | Alufoil 100% |
| Cable type | Twin conductor |
| Certification company | Intertek Semko |
| Cold lead | Yes |
| Cold lead conductor quantity | 2 |
| Cold lead length [m] | 10 m |
| Cold lead quantity | 1 |
| Cold lead size [mm²] | 2.5 mm2 |
| Cold lead type | DTWK |
| Conductor insulation | FEP |
| Coverage area [m²] | 5.9 m2 |
| Deformation strength [N] | 1500 N |
| Description | DEVIasphalt™ 300T 1775W 400V, 0,5 x 11,8m |
| Element IP Class | IPX7 |
| Filler material | XPLE |
| Flame retardant | Yes |
| Heating output [W] | 1775 W |
| Heating principle | Serial resistive |
| Installation temperature [°C] [Min] | -5 °C |
| Lead free | Yes |
| Mat length [m] | 11.8 m |
| Mat output [W/m²] | 300 W/m2 |
| Mat width [m] | 0.5 m |
| Non operating temperature [°C] [Max] | 85 °C |
| Operating temperature [°C] [Max] | 60 °C |
| Outer sheath | XPLO |
| Outer sheath colour | Black |
| Package depth [mm] | 500 mm |
| Package height [mm] | 180 mm |
| Package width [mm] | 180 mm |
| Product group | Heating Mats |
| Product name | DEVIasphalt™ 300T |
| Pulling strength [N] | 300 N |
| Short period temperature [°C] [Max] | 240 °C |
| Supply voltage range [V] AC | 400 V |
| Thickness [mm] | 7 mm |
| Type | DEVIasphalt™ 300T |
| UV Protected | Yes |
| Warranty [Year] | 20 |
