Description

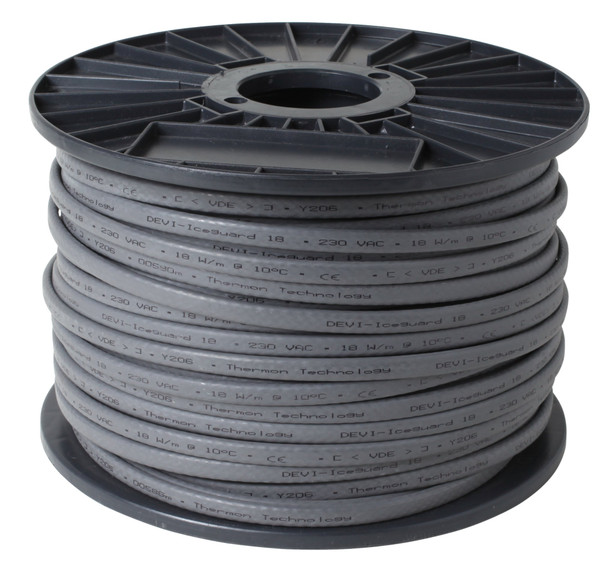

DEVIiceguard 18 Black 270m drum
Product details
| Gross weight | 0.1 kg |
| Net weight | 0.1 kg |
| EAN | 5703435005576 |
| Gross weight | 0.1 kg |
| Net weight | 0.1 kg |
| EAN | 5703435005576 |
| Approval standard | DIN VDE 0254: 1994-06 |
| Bending diameter [mm] [Min] | 32 mm |
| Cable height [mm] | 5.8 mm |
| Cable length [m] | 300 m |
| Cable on drum | Yes |
| Cable output [W/m] | 18 W/m |
| Cable screen | Tinned copper braid |
| Cable self-limiting definition point [W/°C] | 18W@10°C |
| Cable type | Self-limiting |
| Cable width [mm] | 11.8 mm |
| Certification company | Intertek Semko |
| Cold lead | No |
| Conductor insulation | Self-limiting matrix |
| Cut to length | No |
| Description | DEVIiceguard 18 Black 270m drum |
| Filler material | TPE |
| Flame retardant | Yes |
| Heating principle | Self-limiting |
| Installation temperature [°C] [Min] | -50 °C |
| Lead free | Yes |
| Non operating temperature [°C] [Max] | 85 °C |
| Operating temperature [°C] [Max] | 65 °C |
| Outer sheath | TPE |
| Outer sheath colour | Black |
| Package depth [mm] | 380 mm |
| Package height [mm] | 330 mm |
| Package width [mm] | 380 mm |
| Product group | Heating Cables |
| Product name | DEVIiceguard™ 18 (B) |
| Screen braided coverage [%] [Min] | 80 % |
| Supply voltage range [V] AC | 230 V |
| Supply voltage range [V] AC [Max] | 240 V |
| Supply voltage range [V] AC [Min] | 220 V |
| Type | DEVIiceguard™ (B) |
| UV Protected | Yes |
| Warranty [Year] | 5 |
| Approval standard | DIN VDE 0254: 1994-06 |
| Bending diameter [mm] [Min] | 32 mm |
| Cable height [mm] | 5.8 mm |
| Cable length [m] | 300 m |
| Cable on drum | Yes |
| Cable output [W/m] | 18 W/m |
| Cable screen | Tinned copper braid |
| Cable self-limiting definition point [W/°C] | 18W@10°C |
| Cable type | Self-limiting |
| Cable width [mm] | 11.8 mm |
| Certification company | Intertek Semko |
| Cold lead | No |
| Conductor insulation | Self-limiting matrix |
| Cut to length | No |
| Description | DEVIiceguard 18 Black 270m drum |
| Filler material | TPE |
| Flame retardant | Yes |
| Heating principle | Self-limiting |
| Installation temperature [°C] [Min] | -50 °C |
| Lead free | Yes |
| Non operating temperature [°C] [Max] | 85 °C |
| Operating temperature [°C] [Max] | 65 °C |
| Outer sheath | TPE |
| Outer sheath colour | Black |
| Package depth [mm] | 380 mm |
| Package height [mm] | 330 mm |
| Package width [mm] | 380 mm |
| Product group | Heating Cables |
| Product name | DEVIiceguard™ 18 (B) |
| Screen braided coverage [%] [Min] | 80 % |
| Supply voltage range [V] AC | 230 V |
| Supply voltage range [V] AC [Max] | 240 V |
| Supply voltage range [V] AC [Min] | 220 V |
| Type | DEVIiceguard™ (B) |
| UV Protected | Yes |
| Warranty [Year] | 5 |
Product details
| Gross weight | 0.1 kg |
| Net weight | 0.1 kg |
| EAN | 5703435005576 |
| Gross weight | 0.1 kg |
| Net weight | 0.1 kg |
| EAN | 5703435005576 |
| Approval standard | DIN VDE 0254: 1994-06 |
| Bending diameter [mm] [Min] | 32 mm |
| Cable height [mm] | 5.8 mm |
| Cable length [m] | 300 m |
| Cable on drum | Yes |
| Cable output [W/m] | 18 W/m |
| Cable screen | Tinned copper braid |
| Cable self-limiting definition point [W/°C] | 18W@10°C |
| Cable type | Self-limiting |
| Cable width [mm] | 11.8 mm |
| Certification company | Intertek Semko |
| Cold lead | No |
| Conductor insulation | Self-limiting matrix |
| Cut to length | No |
| Description | DEVIiceguard 18 Black 270m drum |
| Filler material | TPE |
| Flame retardant | Yes |
| Heating principle | Self-limiting |
| Installation temperature [°C] [Min] | -50 °C |
| Lead free | Yes |
| Non operating temperature [°C] [Max] | 85 °C |
| Operating temperature [°C] [Max] | 65 °C |
| Outer sheath | TPE |
| Outer sheath colour | Black |
| Package depth [mm] | 380 mm |
| Package height [mm] | 330 mm |
| Package width [mm] | 380 mm |
| Product group | Heating Cables |
| Product name | DEVIiceguard™ 18 (B) |
| Screen braided coverage [%] [Min] | 80 % |
| Supply voltage range [V] AC | 230 V |
| Supply voltage range [V] AC [Max] | 240 V |
| Supply voltage range [V] AC [Min] | 220 V |
| Type | DEVIiceguard™ (B) |
| UV Protected | Yes |
| Warranty [Year] | 5 |
| Approval standard | DIN VDE 0254: 1994-06 |
| Bending diameter [mm] [Min] | 32 mm |
| Cable height [mm] | 5.8 mm |
| Cable length [m] | 300 m |
| Cable on drum | Yes |
| Cable output [W/m] | 18 W/m |
| Cable screen | Tinned copper braid |
| Cable self-limiting definition point [W/°C] | 18W@10°C |
| Cable type | Self-limiting |
| Cable width [mm] | 11.8 mm |
| Certification company | Intertek Semko |
| Cold lead | No |
| Conductor insulation | Self-limiting matrix |
| Cut to length | No |
| Description | DEVIiceguard 18 Black 270m drum |
| Filler material | TPE |
| Flame retardant | Yes |
| Heating principle | Self-limiting |
| Installation temperature [°C] [Min] | -50 °C |
| Lead free | Yes |
| Non operating temperature [°C] [Max] | 85 °C |
| Operating temperature [°C] [Max] | 65 °C |
| Outer sheath | TPE |
| Outer sheath colour | Black |
| Package depth [mm] | 380 mm |
| Package height [mm] | 330 mm |
| Package width [mm] | 380 mm |
| Product group | Heating Cables |
| Product name | DEVIiceguard™ 18 (B) |
| Screen braided coverage [%] [Min] | 80 % |
| Supply voltage range [V] AC | 230 V |
| Supply voltage range [V] AC [Max] | 240 V |
| Supply voltage range [V] AC [Min] | 220 V |
| Type | DEVIiceguard™ (B) |
| UV Protected | Yes |
| Warranty [Year] | 5 |
