Description
Features:
- Total motor starting solution
- Start, stop and protection features
- Local programming keypad and display
- Small footprint and compact size
- Built-in bypass
- Advanced accessoires
- Advanced SCR Control Algorithms balances output waveform
- Easy to install and use
- Easy DIN rail mounting for sizes up to 30 kW
- Essential motor protections (MCD 202)
- Max. ambient temperature 50° C without derating
Additional links:
Technical documentation and Downloads
Request additional information and get a price quote
| Manufacturer: | Danfoss |
| Series: | VLT MCD 200 |

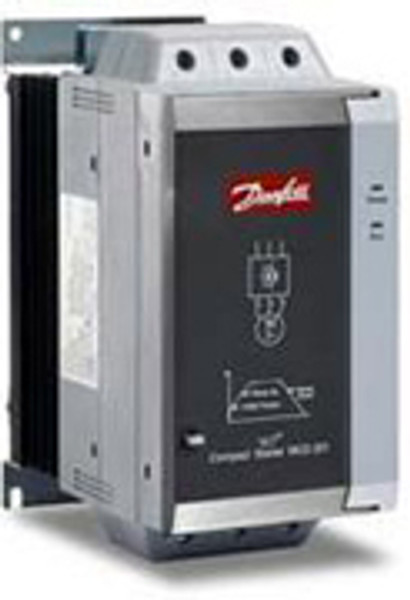

| Model: | MCD 202-055-T4-CV1 |
| Product Code: | 175G5227 |
| Application: | pumps / fans / general purpose |
| Capacity, kW: | 55 |
| Current, А: | 100 |
| Main power supply, V: | 200-440 |
| Phase: | 2 |
| Output frequency, Hz: | 50/60 |
| Enclosure: | IP 20 |
| Acceleration time, sec: | 2-20 |
| Deceleration time, sec: | 2-20 |
| Operation temperature, °С: | -10.....+60 |
| Starting current, % of rated current: | 450 |
| Integrated bypass relay: | + |
| Control type: | digital |
| Microprocessor supply voltage: | 24 VAC/VDC or 110-240 VAC & 380-440 VAC |
| Motor protection (thermal model): | + |
| Motor protection (input for thermistor/thermal relay): | + |
| Motor protection (low current) : | - |
| Motor protection (momentary motor overload): | + |
| Motor protection (Others): | + |
| JOG mode: | - |
| DC braking: | - |
| Inputs/Outputs: | 2 relay outputs: control input line contactor, the indication 'job' or 'failure' |
| Separately adjustable parameters: | 8 |
| Options: | Modbus RTU, AS-I, Profibus, DeviceNet, operator panel for remote management and control with current output |
